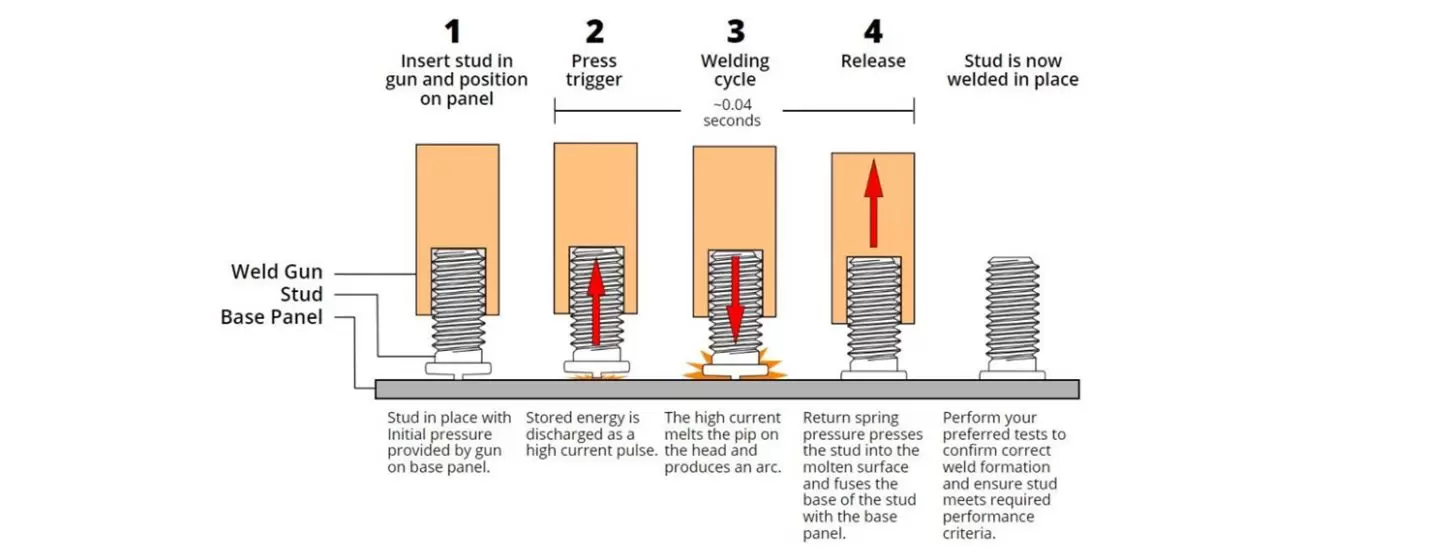

SL Fasteners Pvt. Ltd. provide solutions for Weld studs also. Available in both MS weld studs and Stainless steel SS304 A2 Weld studs, various lengths and thread sizes are available per customer-specific application and requirements. Weld studs are used in the Stud welding process. In this process, a metal stud is joined to a metal workpiece by heating both parts with an arc. Weld studs are as per DIN 32501 and ISO 13918 standards

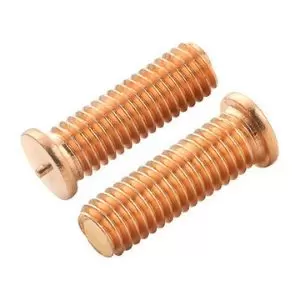

Weld Studs

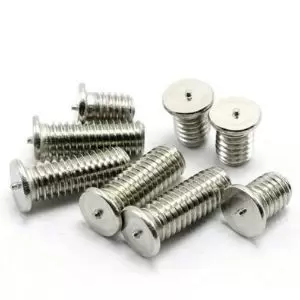

Stainless Steel Weld Studs

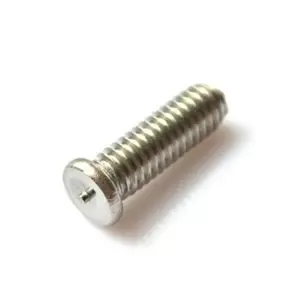

Weld Studs
Weld Studs
MS weld studs – Stainless steel

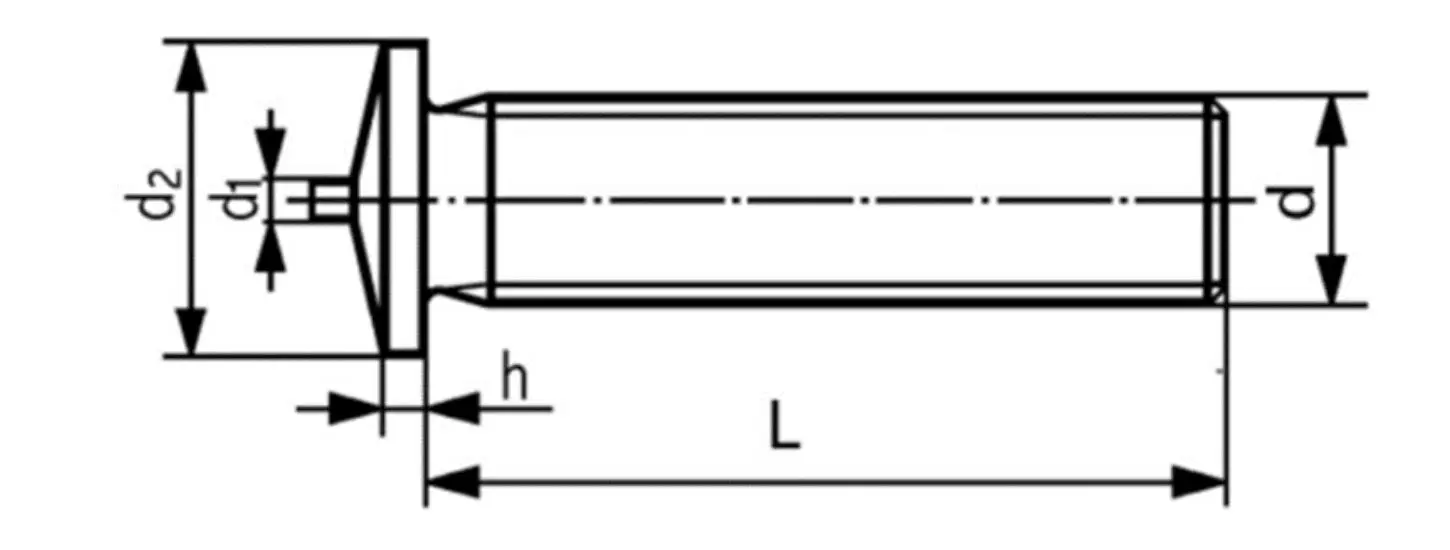

| DIA | M3 X 0.5 | M4 X 0.7 | M5 X 0.8 | M6 X 1.0 | M8 X 1.25 |
|---|---|---|---|---|---|
| h | 0.60 | 0.60 | 0.70 | 0.80 | 1.00 |
| d2 | 4.50 | 5.50 | 6.50 | 7.50 | 9.00 |
| d1 | 0.55 | 0.55 | 0.80 | 0.80 | 1.00 |
| Lengths (mm) | 8/10/12/15/ 20/25 | 8/10/12/15/20 /25/30/35 | 8/10/12/15/20/ 25/30/35/40 | 8/10/12/15/20/ 25/30/35/40 | 8/10/12/15/20/25/ 30/35/40/45/50 |
