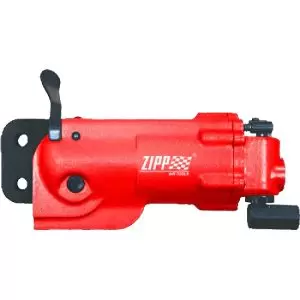

Solid Rivet Tool Model No. ZCR060
| Rivet Capacity Diameter | 3/16(4.75) Alum |
|---|---|
| Rivet Capacity Diameter | 5/32(3.96) Steel |
| Standard Yoke Dimensions | 1-1/2(38.1) Reach |
| Standard Yoke Dimensions | 11/16(17.45) Gap |
| Max Force | 6000(26.7) lb(KN) |
| Set Holder | 9/16(14.27) Max Travel |
| Set Holder | 0.05(1.3) Stroke at Max Power |
| Overall Length | 14(355.6) inch(mm) |
| Weight | 5.4(2.49) lbs(kgs) |
Solid Rivet Tool
- Specially designed for airplane construction to ensure fast, economical riveting where two-man operation is impractical.
- Features strong, steady, silent squeeze action, which is easily controlled for a large variety of rivets.
- Ideal for dimpling, punching, stamping, and pressing. Widely used for truck, bus, and automotive applications.
The extra powerful, portable tandem cylinder also available with double the compressive force for a larger riveting capacity.
