Semi Hex Reduced Head Insert Nut

Semi Hex Reduced Head Insert Nut

The hex insert nuts are for your Hex Holes sheet applications where a drilled or tapped thread cannot be used for structural reasons. Available in open end and closed end both, SL Fasteners Pvt. Ltd. provides solutions as per customer application requirement. The material grade available for hex insert nuts are

  • Steel Semi Hex Reduced Head Insert Nuts, Zinc Plated clear trivalent passivated
  • Stainless Steel Semi Hex Reduced Head Insert Nuts.

The thread sizes of Semi Hex Reduced Head Insert Nuts are available as per 0.5 to 3 mm grip range (1 GR) and 3 to 6mm grip range (2GR)

  • M4 Semi Hex Reduced Head Open Insert Nuts / M4 Semi Hex Reduced Head Closed Insert Nuts
  • M5 Semi Hex Reduced Head Open Insert Nuts / M5 Semi Hex Reduced Head Closed Insert Nuts
  • M6 Semi Hex Reduced Head Open Insert Nuts / M6 Semi Hex Reduced Head Closed Insert Nuts
  • M8 Semi Hex Reduced Head Open Insert Nuts / M8 Semi Hex Reduced Head Closed Insert Nuts
  • M10 Semi Hex Reduced Head Open Insert Nuts / M10 Semi Hex Reduced Head Closed Insert Nuts

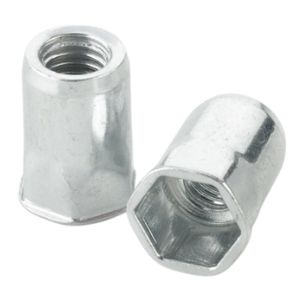

semi hex reduced head insert nut

Semi Hex Reduced Head Insert Nut

semi round reduced head insert nut

Semi Round Reduced Head Insert Nut

close end semi round head insert nut

Semi Round Reduced Head Insert Nut

round reduced head insert nut close body

Semi Round Reduced Head Insert Nut

Open End

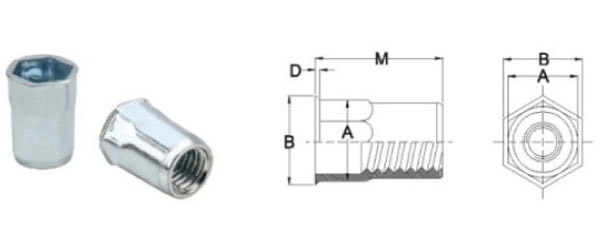

Semi Hex Body, Reduced Head – Steel

Material : Steel

Finish : Zinc Plated clear trivalent passivated

Rohs-logo
Semi Hex Reduced Head insert nut
                                                   Semi Hex Reduced Head Insert NutMetric / 6H
Semi Hex Body, Reduced Head – Steel
Thread SizeGrip RangeHole SizeBody DiaBody LengthHead DiameterHead HeightRecommended Max TorquePull-outTorque-To-TurnPush-outPart Number
 (min ~ max)A (max)M (+/- 0.2)B (+/- 0.3)D (+/- 0.2)Nm (max)kNNm (min)kN
M4 X 0.70.5 ~ 2.56.356.2510.57.00.55.14.24.01.3M4-SH-RH-S-A
M5 X 0.80.5 ~ 3.07.207.0912.08.00.57.95.96.61.9M5-SH-RH-S-A
M6 x 1.00.5 ~ 3.39.609.5014.510.60.612.46.98.72.4M6-SH-RH-S-A
M8 X 1.250.5 ~ 3.510.6010.5016.011.50.616.414.811.82.8M8-SH-RH-S-A
M10 X 1.50.5 ~ 3.812.7012.6018.814.00.833.915.021.03.2M10-SH-RH-S-A
Semi Hex Body, Reduced Head – Steel – Europeon
M4 X 0.70.5 ~ 2.56.05.9510.57.00.55.16.34.21.4M4-SH-RH-S-E
M5 X 0.80.5 ~ 3.07.06.9511.78.00.57.98.87.52.6M5-SH-RH-S-E
M6 x 1.00.5 ~ 3.39.08.9514.510.00.612.414.410.73.2M6-SH-RH-S-E
M8 X 1.250.5 ~ 3.511.010.9516.512.00.632.015.022.74.1M8-SH-RH-S-E
M10 X 1.50.5 ~ 3.813.012.9520.014.50.845.019.738.55.2M10-SH-RH-S-E
Semi Hex Body, Reduced Head – Long – Steel – Europeon
M5 X 0.83.0 ~ 5.57.06.9515.28.00.57.98.87.52.6M5-SH-RH-L-S-E
M6 x 1.03.0 ~ 5.59.08.9517.510.00.612.414.410.73.2M6-SH-RH-L-S-E
M8 X 1.253.0 ~ 5.511.010.9520.012.00.632.015.022.74.1M8-SH-RH-L-S-E

Close End

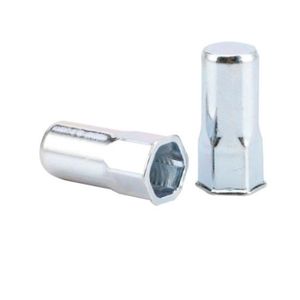

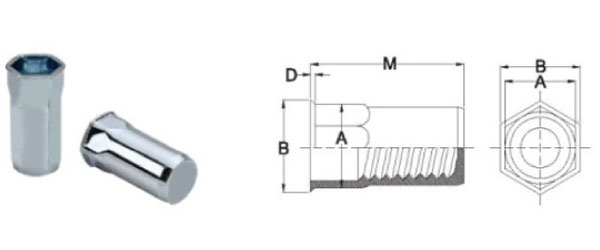

Semi Hex Body, Reduced Head – Close Type – Steel

Material : Steel

Finish : Zinc Plated clear trivalent passivated

Rohs-logo
semi hex body reduced head close type europeon steel
Semi Hex Body, Reduced Head – Close Type – Steel – Europeon
Thread Size Grip Range Hole Size Body Dia Body Length Head Diameter Head Height Recommended Max Torque Pull-out Torque-To-Turn Push-out Part Number
(min ~ max) A (max) M (+/- 0.2) B (+/- 0.3) D (+/- 0.2) Nm (max) kN Nm (min) kN
M4 X 0.7 0.5 ~ 2.5 6.0 5.95 16.3 7.0 0.5 5.1 6.3 4.2 1.4 M4-SH-RH-CT-S-E
M5 X 0.8 0.5 ~ 3.0 7.0 6.95 18.3 8.0 0.5 7.9 8.8 7.5 2.6 M5-SH-RH-CT-S-E
M6 x 1.0 0.5 ~ 3.3 9.0 8.95 21.3 10.0 0.6 12.4 14.4 11.9 5.3 M6-SH-RH-CT-S-E
M8 X 1.25 0.5 ~ 3.5 11.0 10.95 23.8 12.0 0.6 32.0 15.0 25.0 8.0 M8-SH-RH-CT-S-E

Open End

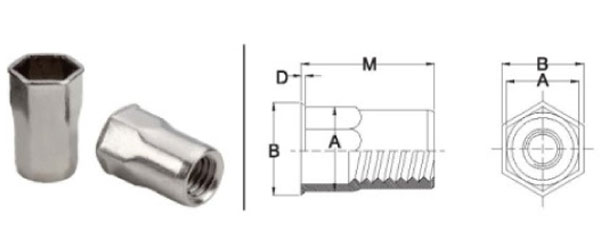

Semi Hex Body, Reduced Head – Stainless Steel

Material : Stainless Steel

Finish : Natural

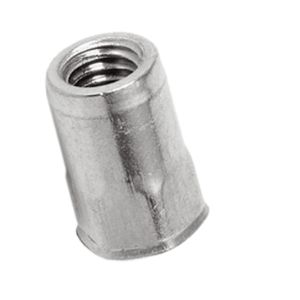

stainless steel semi hex insert nut
                               Semi Hex Reduced Head Insert NutMetric / 6H
Semi Hex Body, Reduced Head – Stainless Steel – Europeon
Thread SizeGrip RangeHole SizeBody DiaBody LengthHead DiameterHead HeightRecommended Max TorquePull-outTorque-To-TurnPush-outPart Number
 (min ~ max)A (max)M (+/- 0.2)B (+/- 0.3)D (+/- 0.2)Nm (max)kNNm (min)kN
M4 X 0.70.5 ~ 2.565.951170.55.16.34.21.4M4-SH-RH-ST-E
M5 X 0.80.5 ~ 3.076.951280.57.98.87.52.6M5-SH-RH-ST-E
M6 x 1.00.5 ~ 3.098.9514100.512.414.410.73.2M6-SH-RH-ST-E
M8 X 1.250.5 ~ 3.51110.9516120.5321522.74.1M8-SH-RH-ST-E
M10 X 1.50.7 ~ 3.81312.951914.20.84519.738.55.2M10-SH-RH-ST-E
Semi Hex Body, Reduced Head – Long – Stainless Steel – Europeon
M4 X 0.72.5 ~ 4.065.9512.870.55.16.34.21.4M4-SH-RH-L-ST-E
M5 X 0.82.5 ~ 4.576.9515.280.57.98.87.52.6M5-SH-RH-L-ST-E
M6 x 1.03.0 ~ 5.098.9517.2100.512.414.410.73.2M6-SH-RH-L-ST-E
M8 X 1.253.0 ~ 5.51110.9518.7120.5321522.74.1M8-SH-RH-L-ST-E
M10 X 1.53.5 ~ 6.01312.9521.5140.64519.738.55.2M10-SH-RH-L-ST-E

Close End

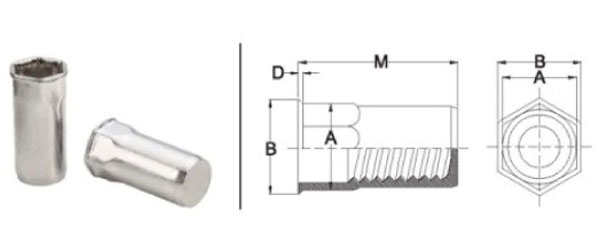

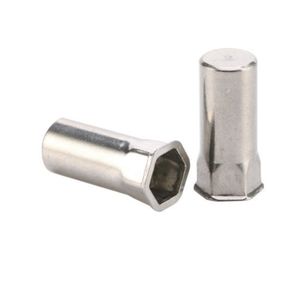

Semi Hex Body, Reduced Head – Close Type – Stainless Steel

Material : Stainless Steel

Finish : Natural

Semi Hex Body, Reduced Head – Close Type – Stainless Steel – Europeon
Thread Size Grip Range Hole Size Body Dia Body Length Head Diameter Head Height Recommended Max Torque Pull-out Torque-To-Turn Push-out Part Number
(min ~ max) A (max) M (+/- 0.2) B (+/- 0.3) D (+/- 0.2) Nm (max) kN Nm (min) kN
M4 X 0.7 0.5 ~ 2.5 6.00 5.95 16.0 7.0 0.5 5.1 6.3 4.2 1.4 M4-SH-RH-CT-ST-E
M5 X 0.8 0.5 ~ 3.0 7.00 6.95 18.0 8.0 0.5 7.9 8.8 7.5 2.6 M5-SH-RH-CT-ST-E
M6 x 1.0 0.5 ~ 3.0 9.00 8.95 21.0 10.0 0.5 12.4 14.4 10.7 3.2 M6-SH-RH-CT-ST-E
M8 X 1.25 0.5 ~ 3.0 11.00 10.95 23.5 12.0 0.5 32.0 15.0 22.7 4.1 M8-SH-RH-CT-ST-E
M10 X 1.5 1.0 ~ 3.5 13.00 12.95 26.5 14.0 0.7 45.0 19.7 38.5 5.2 M10-SH-RH-CT-ST-E
