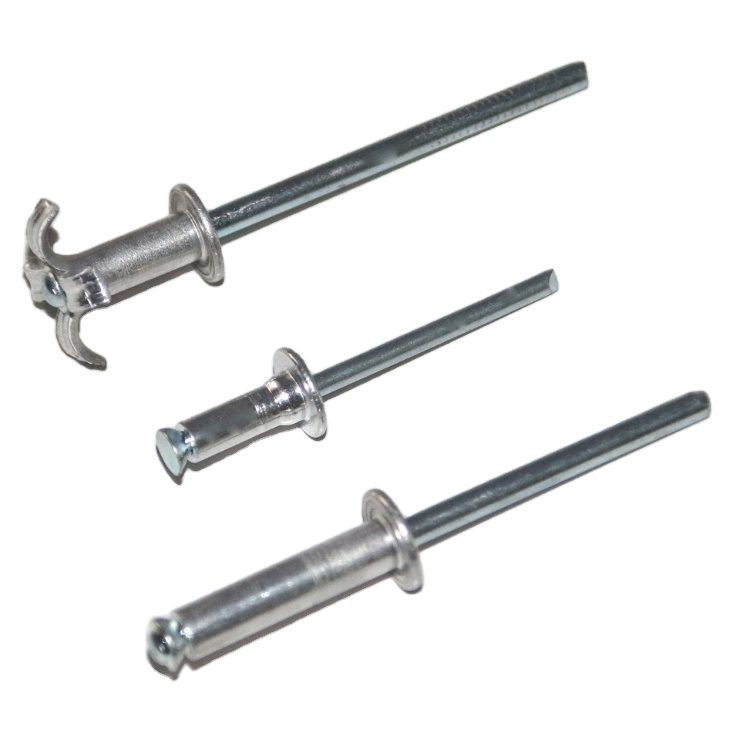

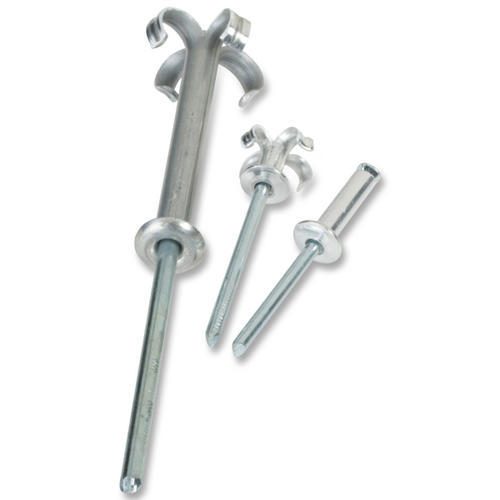

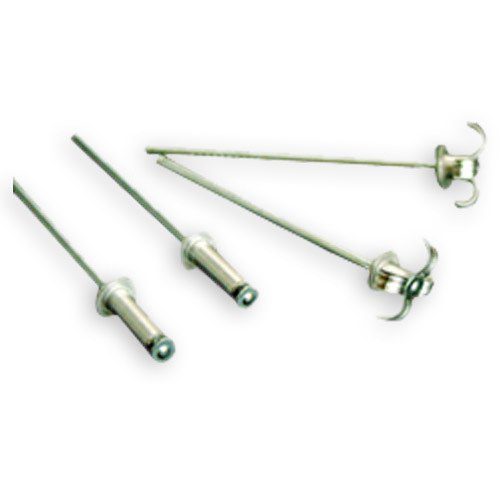

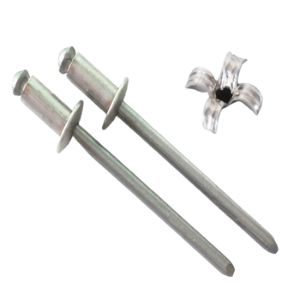

Peel-type rivets are for soft and brittle materials which provide them with improved support. Peel Type rivets split at the end of the rivet body into four separate legs to create a large blind side-bearing surface. SL Fasteners Pvt. Ltd. keep Peel-type rivets in various diameters and lengths as per customer applications. These peel-type rivet are in-house manufactured by SL Fasteners Pvt. Ltd.
- 3.2 mm Peel Type Blind Rivets ( Lengths: 6.4mm, 8.0mm, 9.6mm, 12.7mm, 15.9mm, 19.3mm, 25.4mm)
- 4.0 mm Peel Type Blind Rivets ( Lengths: 6.4mm, 8.0mm, 9.6mm 12.7mm, 15.9mm, 19.3mm, 25.4mm)
- 4.8 mm Peel Type Blind Rivets( Lengths: 6.4mm, 8.0mm, 9.6mm, 12.7mm 15.9mm, 19.3mm, 25.4mm)
|
Material
|
|
Key Features
|
|

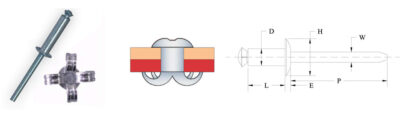

Peel Type Blind Rivet |
|||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Nom Rivet Size (Inch) |
Nom Rivet Size (mm) |
Rivet Code |
Hole Dia |
Domed Head Dia |
Head Height |
Large Head Dia |
Head Height |
Mandrel Dia |
Mandrel Protrusion |
Domed Head Grip Range |
Material Peel Rivet Body – Aluminium 5056 Mandrel – Steel |
||||||||||
|
D |
L |
D |
L |
H |
E |
H |
E |
W |
P |
Tensile Min. |
Shear Min. |
Mandrel Break Load |
|||||||||
|
-0.2 |
Max. |
-0.2 |
Max. |
Min.~ Max. |
Min. |
Max. |
Max. |
Min. |
Max. |
Max. |
Nom |
Min. |
Min.~ Max. |
N |
LBS |
N |
LBS |
N |
LBS |
||
|
1/8 |
1/4 |
3.2 |
6.4 |
4-1 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
1.9 |
27.0 |
0.5 ~ 1.6 |
720 |
160 |
800 |
180 |
Min. |
1780 |
400 |
|
5/16 |
8.0 |
4-2 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
1.9 |
27.0 |
1.6 ~ 3.2 |
|||||||||
|
3/8 |
9.6 |
4-3 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
1.9 |
27.0 |
3.2 ~ 4.8 |
|||||||||
|
1/2 |
12.7 |
4-4 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
1.9 |
27.0 |
4.8 ~ 6.4 |
|||||||||
|
5/8 |
15.9 |
4-5 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
1.9 |
27.0 |
6.4 ~ 9.6 |
Max. |
2668 |
600 |
||||||
|
3/4 |
19.3 |
4-6 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
1.9 |
27.0 |
9.6~12.7 |
|||||||||
|
1.0 |
25.4 |
4-7 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
1.9 |
27.0 |
16.0~19.0 |
|||||||||
|
5/32 |
1/4 |
4.0 |
6.4 |
5-1 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
2.4 |
27.0 |
0.5~1.6 |
1160 |
260 |
1270 |
285 |
Min. |
2668 |
600 |
|
5/16 |
8.0 |
5-2 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
2.4 |
27.0 |
1.6~3.2 |
|||||||||
|
3/8 |
9.6 |
5-3 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
2.4 |
27.0 |
3.2~4.8 |
|||||||||
|
1/2 |
12.7 |
5-4 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
2.4 |
27.0 |
4.8~6.4 |
|||||||||
|
5/8 |
15.9 |
5-5 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
2.4 |
27.0 |
6.4~9.6 |
Max. |
3780 |
850 |
||||||
|
3/4 |
19.3 |
5-6 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
2.4 |
27.0 |
9.6~12.7 |
|||||||||
|
1.0 |
25.4 |
5-7 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
2.4 |
27.0 |
16.0~19.0 |
|||||||||
|
3/16 |
1/4 |
4.8 |
6.4 |
6-1 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
0.5~1.6 |
1610 |
362 |
1870 |
420 |
Min. |
3336 |
750 |
|
5/16 |
8.0 |
6-2 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
1.6~3.2 |
|||||||||
|
3/8 |
9.6 |
6-3 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
3.2~4.8 |
|||||||||
|
1/2 |
12.7 |
6-4 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
4.8~6.4 |
|||||||||
|
5/8 |
15.9 |
6-5 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
6.4~9.6 |
|||||||||
|
3/4 |
19.3 |
6-6 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
9.6~12.7 |
Max. |
4670 |
1050 |
||||||
|
1.0 |
25.4 |
6-7 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
16.0~19.0 |
|||||||||
|
1¼ |
31.8 |
6-8 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
22.4 ~ 25.4 |
|||||||||
|
1½ |
38.1 |
6-9 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
28.6 ~ 31.8 |
|||||||||
|
2.0 |
50.8 |
6-10 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
2.8 |
27.0 |
31.8~35.0 |
|||||||||
