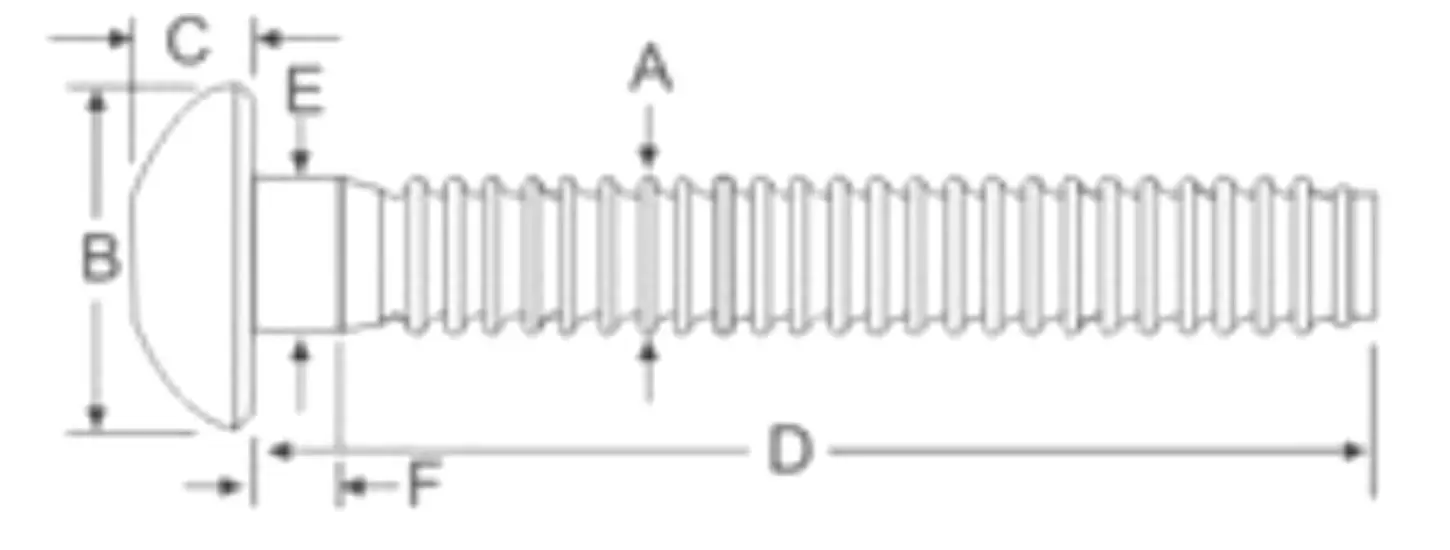

Button Head M-Lock
|
M-Lock Button Head |
|
Material: Steel |
|
Finish: Zinc Plating |
|
Dia No. |
Grip No. |
Grip Range |
Hole Size |
Body Dia |
Body DIA |
Head Diameter |
Head Height |
Body Length |
Body Length |
|---|---|---|---|---|---|---|---|---|---|
|
(A) |
(E) |
(B) |
(C) |
(D) |
(F) |
||||
|
(min ~ max) |
(max.) |
ref. |
max. |
(min ~ max) |
(min ~ max) |
(min ~ max) |
ref. |
||
|
3/16 |
10 |
1.57 ~ 1.59 |
5.56 |
4.72 |
4.88 |
9.02 ~ 10.03 |
2.77 ~ 3.28 |
45.16 ~ 46.43 |
|
|
3/16 |
20 |
7.92 ~ 31.75 |
5.56 |
4.72 |
4.98 |
9.02 ~ 10.03 |
2.77 ~ 3.28 |
59.94 ~ 61.21 |
7.92 |
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
1/4 |
10 |
1.57 ~ 15.88 |
7.14 |
6.30 |
6.58 |
12.19 ~ 13.21 |
3.40 ~ 3.91 |
49.40 ~ 52.96 |
3.18 |
|
1/4 |
20 |
7.92 ~ 31.75 |
7.14 |
6.30 |
6.58 |
12.19 ~ 13.21 |
3.40 ~ 3.91 |
65.53 ~ 68.07 |
7.92 |
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
5/16 |
12 |
3.18 ~ 19.05 |
9.12 |
7.90 |
8.18 |
15.11 ~ 16.63 |
4.47 ~ 5.23 |
59.18 ~ 61.72 |
6.81 |
|
5/16 |
22 |
15.88 ~ 34.93 |
9.12 |
7.90 |
8.18 |
15.11 ~ 16.63 |
4.47 ~ 5.23 |
71.88 ~ 74.42 |
13.97 |
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
3/8 |
14 |
3.18 ~ 22.23 |
10.72 |
9.50 |
9.78 |
18.28 ~ 19.81 |
5.60 ~ 6.35 |
72.77 ~ 75.31 |
4.78 |
|
3/8 |
26 |
19.05 ~ 41.28 |
10.72 |
9.50 |
9.78 |
18.28 ~ 19.81 |
5.60 ~ 6.35 |
88.65 ~ 91.19 |
20.57 |

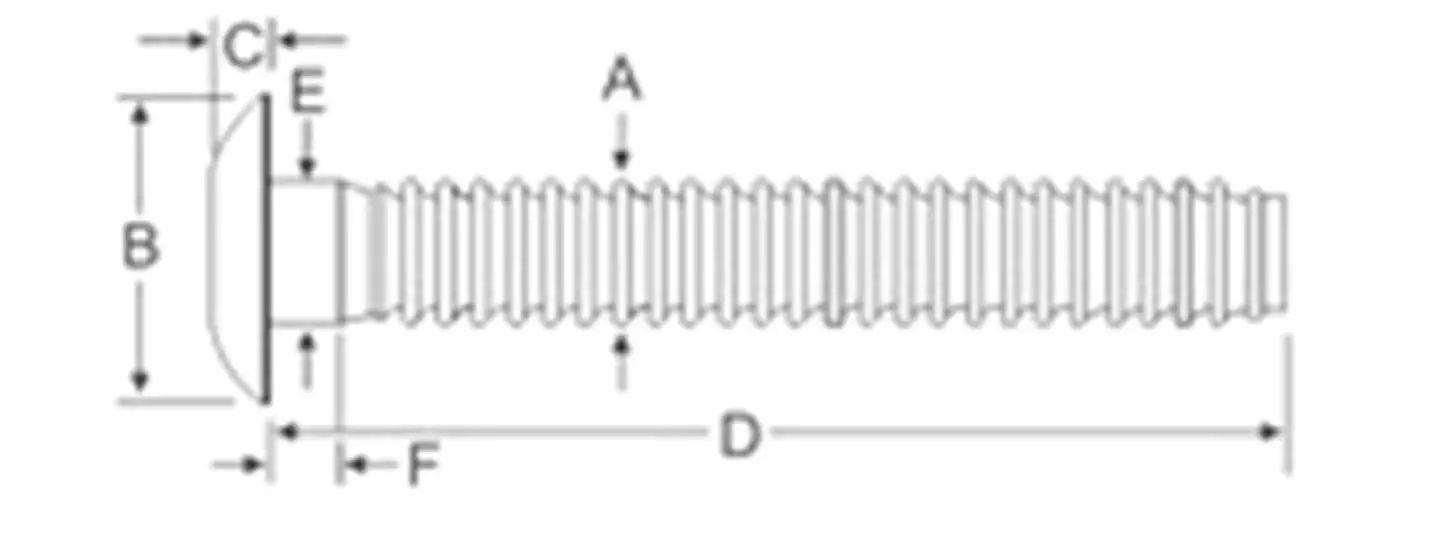

Truss Head M-Lock
|
M-lock Truss Head |
|---|
|
Material: Steel |
|
Finish: Zinc Plating |
|
Dia No. |
Grip No. |
Grip Range |
Hole Size |
Body Dia |
Body DIA |
Head Diameter |
Head Height |
Body Length |
Body Length |
|---|---|---|---|---|---|---|---|---|---|
|
(A) |
(E) |
(B) |
(C) |
(D) |
(F) |
||||
|
(min ~ max) |
(max.) |
ref. |
max. |
(min ~ max) |
(min ~ max) |
(min ~ max) |
ref. |
||
|
1/4 |
10 |
1.57 ~ 1.59 |
7.14 |
6.30 |
6.58 |
13.76 ~ 14.78 |
2.54 ~ 3.04 |
49.66 ~ 52.20 |
3.18 |
|
1/4 |
20 |
7.92 ~ 31.75 |
7.14 |
6.30 |
6.58 |
13.76~ 14.78 |
2.54 ~ 3.04 |
64.77 ~ 67.31 |
7.92 |
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
5/16 |
12 |
3.18 ~ 19.05 |
9.12 |
7.90 |
8.18 |
17.72 ~ 20.37 |
3.02 ~ 3.78 |
59.18 ~ 61.72 |
|
|
5/16 |
22 |
15.88 ~ 34.93 |
9.12 |
7.90 |
8.18 |
17.72 ~ 20.37 |
3.02 ~ 3.78 |
71.88 ~ 74.42 |
13.97 |
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
3/8 |
14 |
3.18 ~ 22.23 |
10.72 |
9.50 |
9.78 |
21.46 ~ 22.98 |
72.77 ~ 75.31 |
4.78 |
|
|
3/8 |
26 |
19.05 ~ 41.28 |
10.72 |
9.50 |
9.78 |
21.46 ~ 22.98 |
88.65 ~ 91.19 |
20.57 |
|

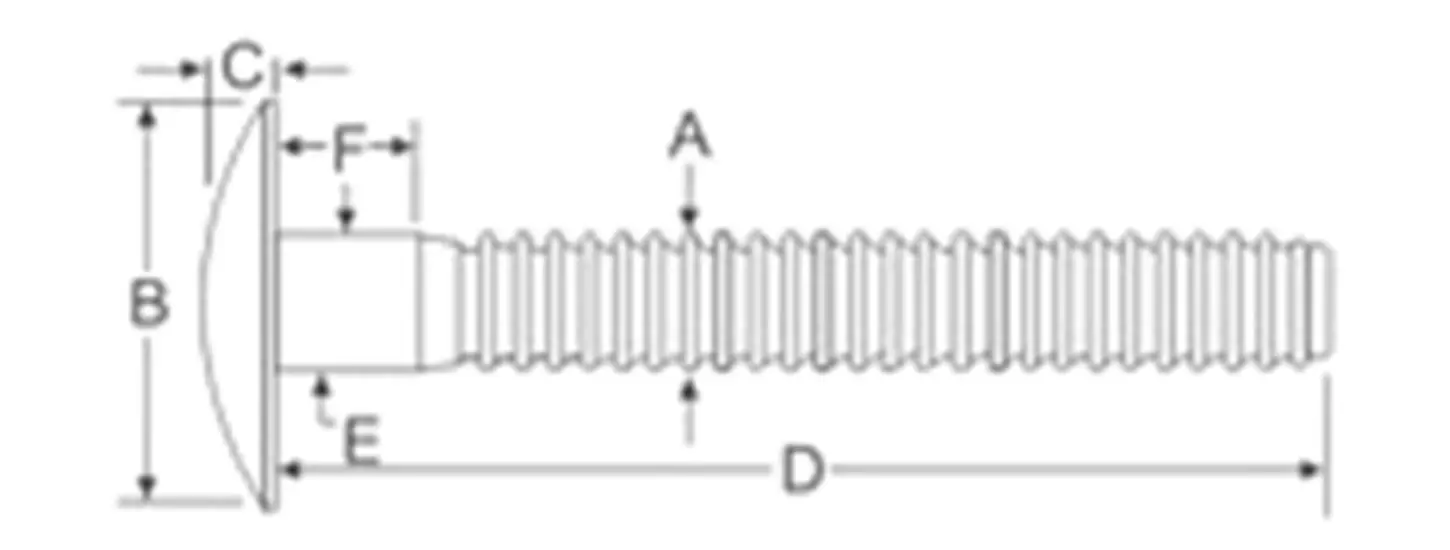

Broad Truss Head M-Lock
|
M-lock Broad Truss Head |
|---|
|
Material: Steel |
|
Finish: Zinc Plating |
|
Dia No. |
Grip No. |
Grip Range |
Hole Size |
Body Dia |
Body DIA |
Head Diameter |
Head Height |
Body Length |
Body Length |
|---|---|---|---|---|---|---|---|---|---|
|
(A) |
(E) |
(B) |
(C) |
(D) |
(F) |
||||
|
(min ~ max) |
(max.) |
ref. |
max. |
(min ~ max) |
(min ~ max) |
(min ~ max) |
ref. |
||
|
1/4 |
10 |
1.57 ~ 15.88 |
7.14 |
6.30 |
6.58 |
3.43 ~ 4.19 |
49.66 ~ 52.20 |
3.18 |
|
|
1/4 |
24 |
15.88 ~ 38.10 |
7.14 |
6.30 |
6.58 |
3.43 ~ 4.19 |
71.12 ~ 73.66 |
14.27 |
|
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
3/8 |
24 |
15.88 ~ 38.10 |
10.72 |
9.78 |
9.78 |
29.94 ~ 31.97 |
4.70 ~ 5.46 |
85.47 ~ 88.01 |
17.27 |
|
3/8 |
32 |
28.58 ~ 50.80 |
10.72 |
9.50 |
9.78 |
29.94 ~ 31.97 |
4.70 ~ 5.46 |
98.17 ~ 100.71 |
29.97 |

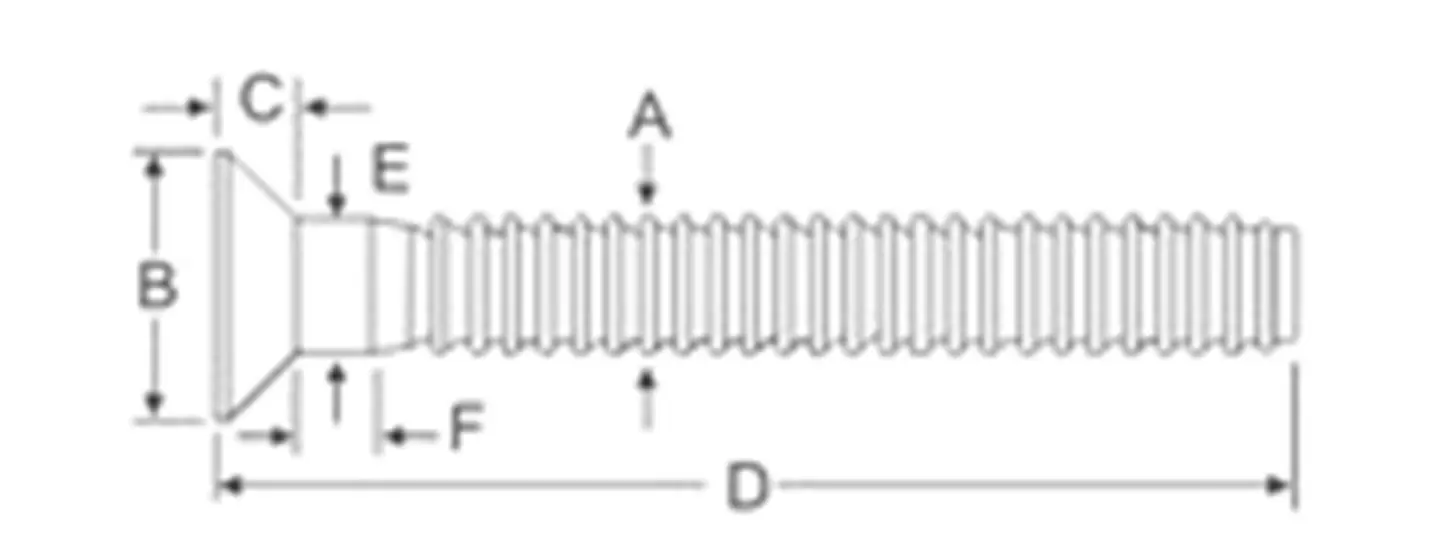

90° CSK Head M-Lock
|
M-lock 90° CSK Head |
|---|
|
Material: Steel |
|
Finish: Zinc Plating |
|
Dia No. |
Grip No. |
Grip Range |
Hole Size |
Body Dia |
Body DIA |
Head Diameter |
Head Height |
Body Length |
Body Length |
|---|---|---|---|---|---|---|---|---|---|
|
(A) |
(E) |
(B) |
(C) |
(D) |
(F) |
||||
|
(min ~ max) |
(max.) |
ref. |
max. |
(min ~ max) |
(min ~ max) |
(min ~ max) |
ref. |
||
|
3/16 |
10 |
1.57 ~ 1.59 |
5.56 |
4.72 |
4.98 |
8.15 ~ 9.17 |
2.29 ~ 2.67 |
45.16 ~ 46.43 |
3.99 |
|
3/16 |
20 |
7.92 ~ 31.75 |
5.56 |
4.72 |
4.98 |
9.02 ~ 10.03 |
1.91 ~ 2.29 |
59.94 ~ 61.21 |
10.36 |
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
1/4 |
10 |
1.57 ~ 15.88 |
7.14 |
6.30 |
6.58 |
10.80 ~ 12.07 |
2.92 ~ 3.30 |
49.66 ~ 52.20 |
5.33 |
|
1/4 |
20 |
7.92 ~ 31.75 |
7.14 |
6.30 |
6.58 |
10.80 ~ 12.07 |
2.54 ~ 2.92 |
64.77 ~ 67.31 |
10.72 |
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
5/16 |
12 |
3.18 ~ 19.05 |
9.12 |
7.90 |
8.18 |
13.76 ~ 15.08 |
3.78 ~ 4.11 |
59.18 ~ 61.72 |
5.77 |
|
5/16 |
22 |
15.88 ~ 34.93 |
9.12 |
7.90 |
8.18 |
13.76 ~ 15.08 |
3.28 ~ 3.61 |
71.88 ~ 74.42 |
18.47 |
|
- |
-- |
--- |
---- |
----- |
----- |
---- |
--- |
-- |
- |
|
3/8 |
14 |
3.18 ~ 22.23 |
10.72 |
9.50 |
9.78 |
16.56 ~ 18.08 |
4.34 ~ 5.11 |
72.77 ~ 75.31 |
4.78 |
|
3/8 |
26 |
19.05 ~ 41.28 |
10.72 |
9.50 |
9.78 |
16.56 ~ 18.08 |
3.71 ~ 4.47 |
88.65 ~ 91.19 |
20.57 |

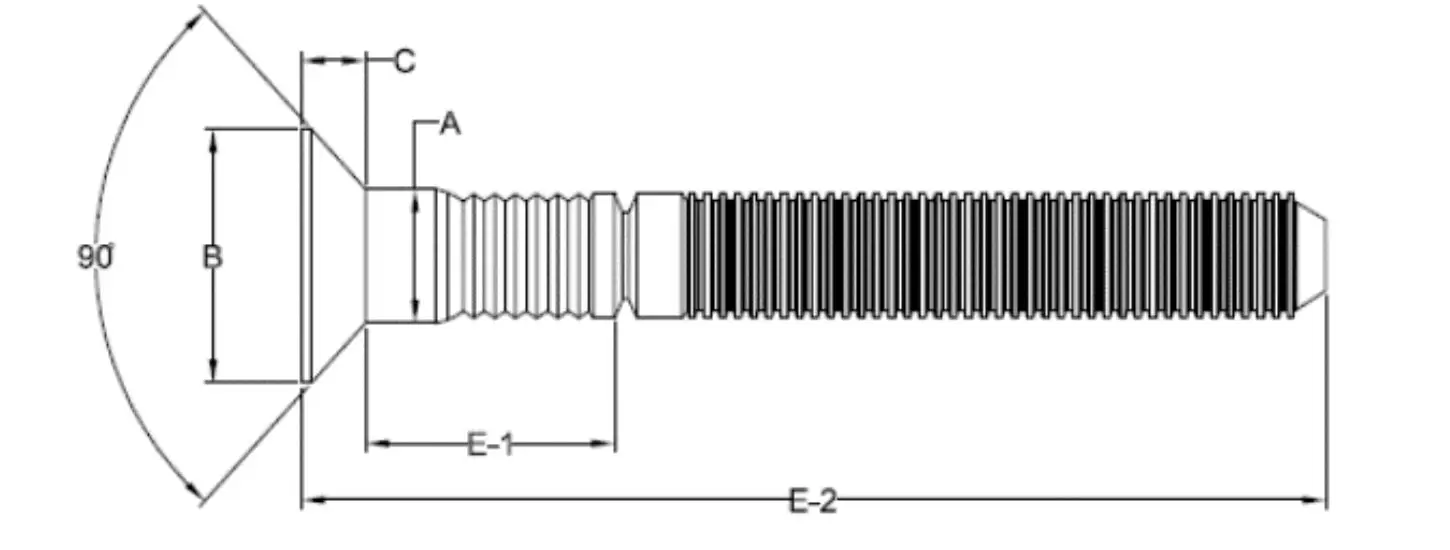

M-lock Bolt Rivet Head
|
M-lock Bolt Rivet Head |
|---|
|
Material: Steel |
|
Finish: Zinc Plating |
|
Dia No. |
Grip No. |
Grip Range |
Hole Size |
Body Dia |
Body DIA |
Head Diameter |
Head Height |
Body Length |
Body Length |
|---|---|---|---|---|---|---|---|---|---|
|
(A) |
(E) |
(B) |
(C) |
(D) |
(F) |
||||
|
(min ~ max) |
(max.) |
ref. |
max. |
(min ~ max) |
(min ~ max) |
(min ~ max) |
ref. |
||
|
3/16 |
10 |
1.57 ~ 15.88 |
5.56 |
4.72 |
4.98 |
11.38 ~ 12.40 |
2.24 ~ 2.74 |
45.16 ~ 46.43 |
|
|
1/4 |
24 |
7.92 31.75 |
5.56 |
4.72 |
4.98 |
11.38 ~ 12.40 |
2.24 ~ 2.74 |
59.94 ~ 61.21 |
7.92 |
