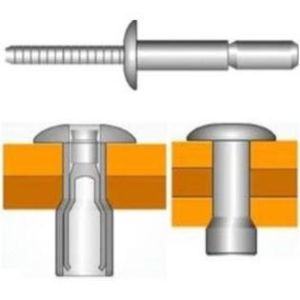

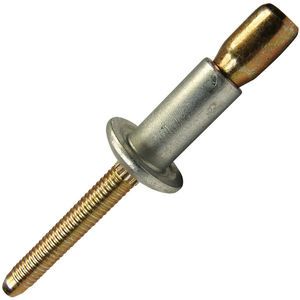

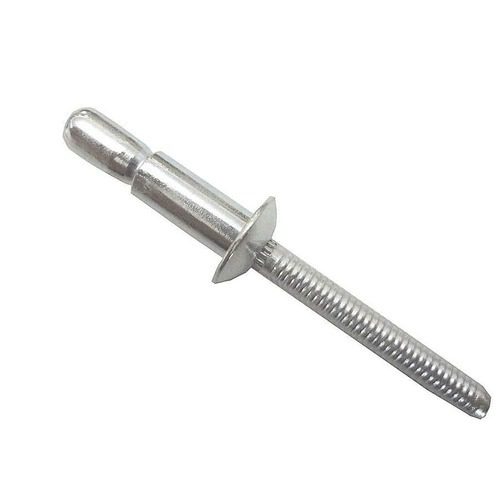

I lock rivet are also known as friction lock rivets. I-lock rivet are in higher demand among international customers. The locking mechanism has been engineered into the fastener to create an internal I-lock Rivet during installation that eliminates pin pushout by mechanically locking the pin to the sleeve.
- Aluminum I lock rivets
- Steel I lock rivets
- Stainless Steel I lock rivets
Various lengths and dia of I Lock rivets are as under
- Dia 4.8 mm I-Lock Rivets ( Lengths: 18.2mm 5mm,27.7mm)
- Dia 6.4 mm I-Lock Rivets ( Lengths: 30.0mm, 7mm, 36.2mm)
- Dia 10 mm I-Lock Rivets ( Lengths: 39.4mm)
Customized sizes are also made as per customer drawings and applications
Material
- Rivet Body – Steel, Mandrel – Steel
Key Features
- Multi-grip capability
- Fully sealed fastener
- Excellent hole fill
- Mechanically locked stem
- Good sheet take-up performance
|

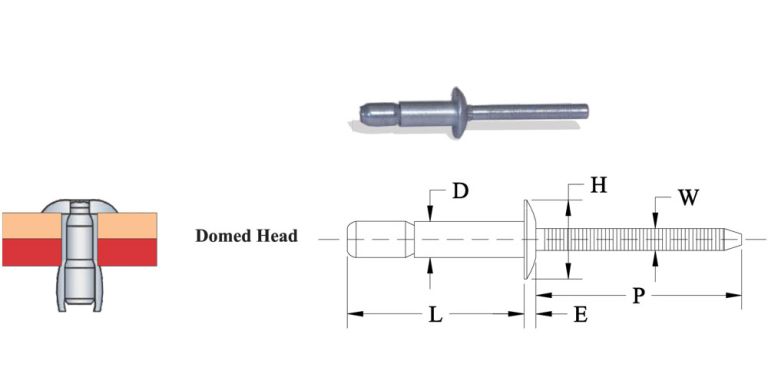

I-Lock Steel |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Domed Head |
||||||||||||||||
|
Nom Rivet Size (mm) |
Rivet Code |
Hole Dia |
Domed Head Dia |
Head Height |
Mandrel Dia |
Mandrel Protrusion |
Domed Head Grip Range |
I-Lock Rivet Body – Steel Mandrel – Steel |
||||||||
|
D |
L |
H |
E |
W |
P |
Tensile Min. |
Shear Min. |
Mandrel Break Load |
||||||||
|
-0.2 |
Max. |
Min.~ Max. |
Min. |
Max. |
Max. |
Nom |
Min. |
Min.~ Max. |
N |
LBS |
N |
LBS |
N |
LBS |
||
|
4.8 |
18.2 |
6-1 |
4.93~5.18 |
9.0 |
10.2 |
2.3 |
3.1 |
27.0 |
1.57 ~ 6.35 |
4440 |
998 |
5780 |
1299 |
Min. |
5560 |
1250 |
|
25.5 |
6-2 |
5.44 ~ 11.10 |
||||||||||||||
|
25.5 |
6-2.1 |
1.57 ~ 11.10 |
Max. |
6894 |
1550 |
|||||||||||
|
27.7 |
6-3 |
9.53 ~ 15.88 |
||||||||||||||
|
6.4 |
30.0 |
7-1 |
6.63 ~ 7.01 |
12.0 |
13.5 |
3.0 |
4.1 |
27.0 |
2.03 ~ 9.53 |
8220 |
1847 |
10670 |
2398 |
Min. |
12232 |
2750 |
|
33.7 |
7-2 |
8.89 ~ 15.88 |
||||||||||||||
|
36.2 |
7-3 |
2.03 ~ 15.88 |
Max. |
14011 |
3150 |
|||||||||||
|
10.0 |
39.4 |
8-1 |
9.96~10.39 |
19.0 |
19.6 |
4.4 |
6.1 |
27.0 |
3.05 ~ 15.88 |
16010 |
3599 |
26240 |
5898 |
Min. |
N/A |
N/A |
|
Max. |
N/A |
N/A |
||||||||||||||
|

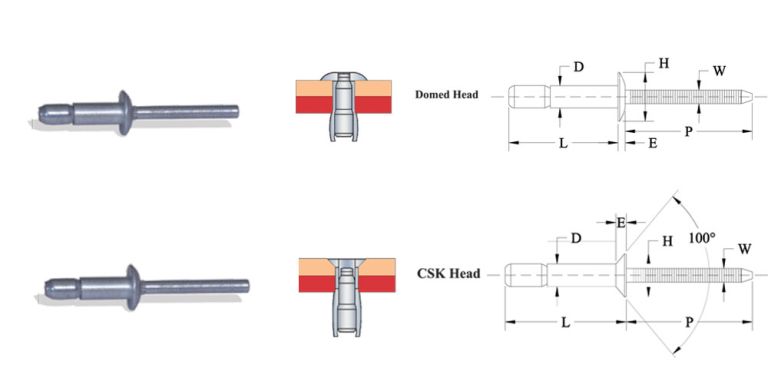

CSK Head |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Nom Rivet Size (mm) |
Rivet Code |
Hole Dia |
CSK Head Dia |
Head Height |
Mandrel Dia |
Mandrel Protrusion |
CSK Head Grip Range |
I-Lock Rivet Body – Steel Mandrel – Steel |
||||||||
|
D |
L |
H |
E |
W |
P |
Tensile Min. |
Shear Min. |
Mandrel Break Load |
||||||||
|
-0.2 |
Max. |
Min.~ Max. |
Min. |
Max. |
Max. |
Nom |
Min. |
Min.~ Max. |
N |
LBS |
N |
LBS |
N |
LBS |
||
|
4.8 |
20.2 |
6-1 |
4.93~5.18 |
8.5 |
9.2 |
1.8 |
3.1 |
27.0 |
3.18 ~ 8.41 |
4440 |
998 |
5780 |
1299 |
Min. |
5560 |
1250 |
|
Max. |
6894 |
1550 |
||||||||||||||
|
6.4 |
28.4 |
7-1 |
6.63 ~ 7.01 |
10.7 |
11.4 |
2.0 |
4.1 |
27.0 |
4.32 ~ 12.07 |
8220 |
1847 |
10670 |
2398 |
Min. |
9118 |
2050 |
|
Max. |
10898 |
2450 |
||||||||||||||
Material
- Rivet Body – Stainless Steel,
Mandrel – Stainless Steel
Key Features
- Multi-grip capability
- Fully sealed fastener
- Excellent hole fill
- Mechanically locked stem
- Good sheet take-up performance
|
I-Lock Stainless Steel |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Domed Head |
||||||||||||||||
|
Nom Rivet Size (mm) |
Rivet Code |
Hole Dia |
Domed Head Dia |
Head Height |
Mandrel Dia |
Mandrel Protrusion |
Domed Head Grip Range |
I-Lock Rivet Body – Stainless Steel Mandrel – Stainless Steel | ||||||||
|
D |
L |
H |
E |
W |
P |
Tensile Min. |
Shear Min. |
Mandrel Break Load |
||||||||
|
-0.2 |
Max. |
Min.~ Max. |
Min. |
Max. |
Max. |
Nom |
Min. |
Min.~ Max. |
N |
LBS |
N |
LBS |
N |
LBS |
||
|
4.8 |
21.4 |
6-1 |
4.93~5.18 |
9.0 |
10.2 |
2.3 |
3.1 |
27.0 |
1.57 ~ 6.35 |
4440 |
998 |
5780 |
1299 |
Min. |
4893 |
1100 |
|
25.5 |
6-2 |
1.57 ~ 11.10 |
Max. |
6227 |
1400 |
|||||||||||
|
6.4 |
28.4 |
7-1 |
6.63 ~ 7.01 |
12.0 |
13.5 |
3.0 |
4.1 |
27.0 |
2.03 ~ 9.53 |
8220 |
1847 |
10670 |
2398 |
Min. |
9118 |
2050 |
|
30.0 |
7-2 |
2.03 ~ 11.10 |
||||||||||||||
|
36.4 |
7-3 |
2.03 ~ 15.88 |
Max. |
10898 |
2450 |
|||||||||||
- Rivet Body – Aluminium, Mandrel – Aluminium
Key Features
- Multi-grip capability
- Fully sealed fastener
- Excellent hole fill
- Mechanically locked stem
- Good sheet take-up performance
|
I-Lock Aluminium |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Domed Head |
||||||||||||||||
|
Nom Rivet Size (mm) |
Rivet Code |
Hole Dia |
Domed Head Dia |
Head Height |
Mandrel Dia |
Mandrel Protrusion |
Domed Head Grip Range |
I-Lock Rivet Body – Aluminium Mandrel – Aluminium |
||||||||
|
D |
L |
H |
E |
W |
P |
Tensile Min. |
Shear Min. |
Mandrel Break Load |
||||||||
|
-0.2 |
Max. |
Min.~ Max. |
Min. |
Max. |
Max. |
Nom |
Min. |
Min.~ Max. |
N |
LBS |
N |
LBS |
N |
LBS |
||
|
4.8 |
21.4 |
6-1 |
4.93~5.18 |
9.0 |
10.2 |
2.3 |
3.1 |
27.0 |
1.57 ~ 6.35 |
2000 |
449 |
2400 |
539 |
Min. |
3336 |
750 |
|
22.3 |
6-2 |
5.44 ~ 11.10 |
||||||||||||||
|
24.8 |
6-3 |
1.57 ~ 11.10 |
Max. |
4670 |
1050 |
|||||||||||
|
27.7 |
6-4 |
9.53 ~ 15.88 |
||||||||||||||
|
6.4 |
30.0 |
7-1 |
6.63 ~ 7.01 |
12.0 |
13.5 |
3.0 |
4.1 |
27.0 |
2.03 ~ 9.53 |
3600 |
809 |
5600 |
1258 |
Min. |
4893 |
1100 |
|
33.1 |
7-2 |
8.89 ~ 15.88 |
||||||||||||||
|
35.6 |
7-3 |
2.03 ~ 15.88 |
Max. |
6227 |
1400 |
|||||||||||
