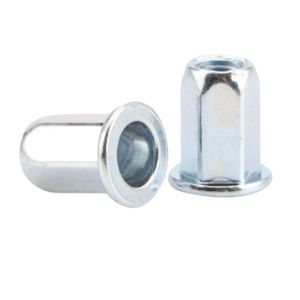

Insert Nuts and remove the need for general-purpose nuts and tapping threads. They are an excellent choice when one side of the application is accessible, which means the other side is blind. The Flat Head Insert Nuts are for customer Hex hole and large head requirements.
The material grade available for hex insert nuts are
- Steel Hex Flat Head Insert Nuts, Zinc Plated clear trivalent passivated
The thread sizes of Hex Flathead Insert Nuts are available as per 0.5 to 3 mm grip range (1 GR) and 3 to 6mm grip range (2GR)
- M4 Hex Flat Head Open Insert Nuts / M4 Hex Flat Head Closed Insert Nuts
- M5 Hex Flat Head Open Insert Nuts / M5 Hex Flat Head Closed Insert Nuts
- M6 Hex Flat Head Open Insert Nuts / M6 Hex Flat Head Closed Insert Nuts
- M8 Hex Flat Head Open Insert Nuts / M8 Hex Flat Head Closed Insert Nuts
- M10 Hex Flat Head Open Insert Nuts / M10 Hex Flat Head Closed Insert Nuts

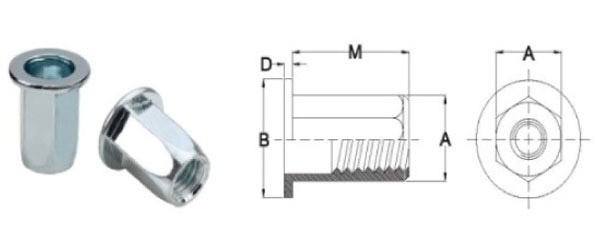

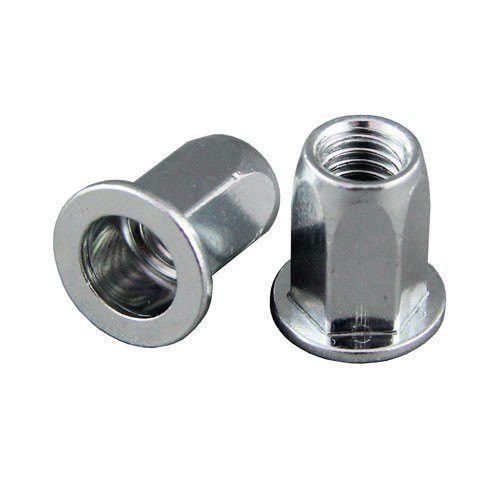

Open End
Hex Body, Flat Head – Steel
Material : Steel
Finish : Zinc Plated clear trivalent passivated
|
Hex Large Head /Hex Flat Head Insert Nut |
Metric / 6H |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Hex Body, Flat Head – Steel – Europeon |
|||||||||||
|
Thread Size |
Grip Range |
Hole Size |
Body Dia |
Body Length |
Head Diameter |
Head Height |
Recommended Max Torque |
Pull-out |
Torque-To-Turn |
Push-out |
Part Number |
|
(min ~ max) |
A (max) |
M (+/- 0.2) |
B (+/- 0.3) |
D (+/- 0.2) |
Nm (max) |
kN |
Nm (min) |
kN |
|||
|
M4 X 0.7 |
0.5 ~ 2.5 |
6.0 |
5.95 |
10.3 |
9.0 |
0.9 |
5.1 |
6.3 |
4.5 |
2.2 |
M4-H-FH-S-E |
|
M5 X 0.8 |
0.5 ~ 3.0 |
7.0 |
6.95 |
12.0 |
10.0 |
1.0 |
7.9 |
8.8 |
8.6 |
3.6 |
M5-H-FH-S-E |
|
M6 x 1.0 |
0.5 ~ 3.3 |
9.0 |
8.95 |
14.5 |
13.0 |
1.5 |
12.4 |
14.4 |
11.9 |
5.3 |
M6-H-FH-S-E |
|
M8 X 1.25 |
0.5 ~ 3.3 |
11.0 |
10.95 |
16.5 |
16.0 |
1.5 |
32.0 |
15.0 |
25.0 |
8.0 |
M8-H-FH-S-E |
|
M10 X 1.5 |
0.5 ~ 3.5 |
13.0 |
12.95 |
22.0 |
19.0 |
2.0 |
45.0 |
19.7 |
45.2 |
9.2 |
M10-H-FH-S-E |
|
Hex Body, Flat Head – Long – Steel – Europeon |
|||||||||||
|
M4 X 0.7 |
2.0 ~ 3.5 |
6.0 |
5.95 |
11.8 |
9.0 |
0.9 |
5.1 |
6.3 |
4.5 |
2.2 |
M4-H-FH-L-S-E |
|
M5 X 0.8 |
3.0 ~ 4.5 |
7.0 |
6.95 |
13.5 |
10.0 |
1.0 |
7.9 |
8.8 |
8.6 |
3.6 |
M5-H-FH-L-S-E |
|
M6 x 1.0 |
3.0 ~ 5.0 |
9.0 |
8.95 |
16.5 |
13.0 |
1.5 |
12.4 |
14.4 |
11.9 |
5.3 |
M6-H-FH-L-S-E |
|
M8 X 1.25 |
3.0 ~ 5.0 |
11.0 |
10.95 |
19.0 |
16.0 |
1.5 |
32.0 |
15.0 |
25.0 |
8.0 |
M8-H-FH-L-S-E |
|
M10 X 1.5 |
3.0 ~ 5.5 |
13.0 |
12.95 |
23.5 |
19.0 |
2.0 |
45.0 |
19.7 |
45.2 |
9.2 |
M10-H-FH-L-S-E |

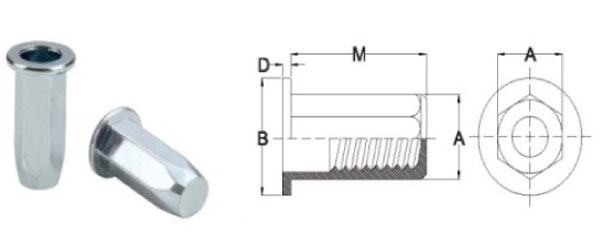

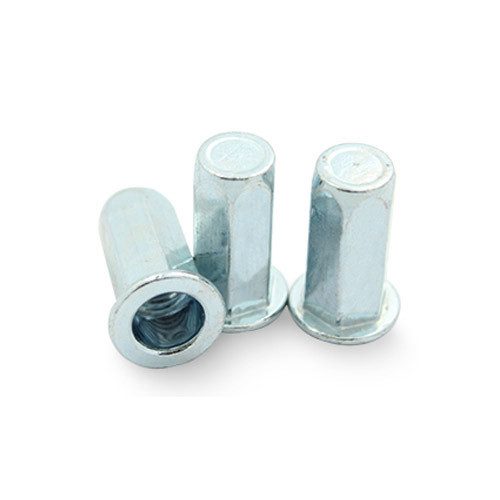

Close End
Hex Body, Flat Head – Close Type – Steel
Material : Steel
Finish : Zinc Plated clear trivalent passivated
|
Hex Body, Flat Head – Close Type – Steel – Europeon |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Thread Size |
Grip Range |
Hole Size |
Body Dia |
Body Length |
Head Diameter |
Head Height |
Recommended Max Torque |
Pull-out |
Torque-To-Turn |
Push-out |
Part Number |
|
(min ~ max) |
A (max) |
M (+/- 0.2) |
B (+/- 0.3) |
D (+/- 0.2) |
Nm (max) |
kN |
Nm (min) |
kN |
|||
|
M4 X 0.7 |
0.5 ~ 2.5 |
6.0 |
5.95 |
14.0 |
9.0 |
0.9 |
5.1 |
6.3 |
4.5 |
2.2 |
M4-H-FH-CT-S-E |
|
M5 X 0.8 |
0.5 ~ 3.0 |
7.0 |
6.95 |
19.0 |
10.0 |
1.0 |
7.9 |
8.8 |
8.6 |
3.6 |
M5-H-FH-CT-S-E |
|
M6 x 1.0 |
0.5 ~ 3.3 |
9.0 |
8.95 |
21.5 |
13.0 |
1.5 |
12.4 |
14.4 |
11.9 |
5.3 |
M6-H-FH-CT-S-E |
|
M8 X 1.25 |
0.5 ~ 3.3 |
11.0 |
10.95 |
25.0 |
16.0 |
1.5 |
32.0 |
15.0 |
25.0 |
8.0 |
M8-H-FH-CT-S-E |
|
M10 X 1.5 |
0.5 ~ 3.5 |
13.0 |
12.95 |
31.0 |
19.0 |
2.0 |
45.0 |
19.7 |
45.2 |
9.2 |
M10-H-FH-CT-S-E |
