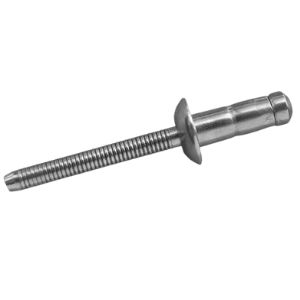

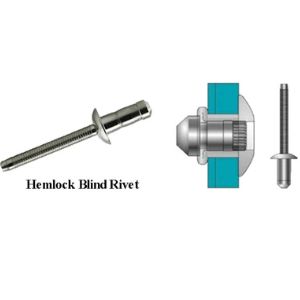

H-Lock rivet are structural break stem fasteners with exceptional shear and tensile strength. The grooved mandrel ensures safe locking. H lock rivet is also a high-strength structural rivet. H-Lock rivet are available in
- Aluminium H-Lock rivets
- Steel H-Lock rivets
Diameters and lengths available in H-Lock rivets are:
- 6.4 mm H-Lock rivets ( Lengths: 9.4mm, 10.7mm, 11.3mm, 12.7mm, 14.7mm, 15.4mm, 15.7mm, 16.7mm, 18.7mm, 20.4mm)
- 7.8 mm H-Lock rivets ( Lengths: 13.5mm, 16.5mm, 19.5mm, 22.5mm)
|
Material
|
|
Key Features
|
|
H-Lock – Steel |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rivet Size (mm) |
Rivet Code |
Hole Dia |
Domed Head Dia |
Head Height |
Mandrel Dia |
Mandrel Protrusion |
Domed Head Grip Range |
H Lock Rivet Body – Steel Mandrel – Steel |
||||||||||
|
D |
L₁ |
D |
L₂ |
H |
E |
W |
P |
Tensile Min. |
Shear Min. |
Mandrel Break Load |
||||||||
|
-0.2 |
Max. |
-0.2 |
Max. |
Min.~ Max. |
Min. |
Max. |
Max. |
Nom |
Min. |
Min.~ Max. |
N |
LBS |
N |
LBS |
N |
LBS |
||
|
6.4 |
9.4 |
6.4 |
13.7 |
7-1 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
1.50 ~ 3.50 |
8800 |
1978 |
10500 |
2360 |
Min. |
13789 |
3100 |
|
10.7 |
15.0 |
7-2 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
2.80 ~ 4.80 |
8800 |
1978 |
12000 |
2698 |
|||||
|
11.3 |
15.6 |
7-3 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
3.40 ~ 5.40 |
8800 |
1978 |
12000 |
2698 |
|||||
|
12.7 |
17.0 |
7-4 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
4.80 ~ 6.80 |
8800 |
1978 |
12500 |
2810 |
|||||
|
14.7 |
19.0 |
7-5 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
6.80 ~ 8.80 |
8800 |
1978 |
14000 |
3147 |
|||||
|
15.4 |
20.0 |
7-6 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
7.50 ~ 8.80 |
8800 |
1978 |
14000 |
3147 |
Max. |
15568 |
3500 |
||
|
15.7 |
20.0 |
7-7 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
7.80 ~ 9.80 |
8800 |
1978 |
14000 |
3147 |
|||||
|
16.7 |
21.0 |
7-8 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
8.80 ~ 10.80 |
8800 |
1978 |
16000 |
3597 |
|||||
|
18.7 |
23.0 |
7-9 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
10.80 ~ 12.80 |
8800 |
1978 |
16000 |
3597 |
|||||
|
20.4 |
24.8 |
7-10 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
12.60 ~ 14.60 |
8800 |
1978 |
16000 |
3597 |
|||||
|
7.8 |
13.5 |
7.8 |
17.5 |
8-1 |
8.1~8.3 |
16.0 |
18.0 |
4.2 |
5.1 |
28.0 |
4.0 ~ 7.0 |
9100 |
2046 |
13500 |
3035 |
|||
|
16.5 |
20.5 |
8-2 |
8.1~8.3 |
16.0 |
18.0 |
4.2 |
5.1 |
28.00 |
7.0 ~ 10.0 |
9100 |
2046 |
16000 |
3597 |
|||||
|
19.5 |
23.5 |
8-3 |
8.1~8.3 |
16.0 |
18.0 |
4.2 |
5.1 |
28.00 |
10.0 ~ 13.0 |
9100 |
2046 |
16000 |
3597 |
|||||
|
22.5 |
26.5 |
8-4 |
8.1~8.3 |
16.0 |
18.0 |
4.2 |
5.1 |
28.0 |
13.0 ~ 16.0 |
9100 |
2046 |
16000 |
3597 |
|||||
Material
- Rivet Body – Aluminium, Mandrel – Aluminium
Key Features
- Very high shear and tensile strength
- Large blind side bearing area
- Interference lock via splined Stem
|
H-Lock – Aluminium |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rivet Size (mm) |
Rivet Code |
Hole Dia |
Domed Head Dia |
Head Height |
Mandrel Dia |
Mandrel Protrusion |
Domed Head Grip Range |
H Lock Rivet Body – Steel Mandrel – Steel |
||||||||||
|
D |
L₁ |
D |
L₂ |
H |
E |
W |
P |
Tensile Min. |
Shear Min. |
Mandrel Break Load |
||||||||
|
-0.2 |
Max. |
-0.2 |
Max. |
Min.~ Max. |
Min. |
Max. |
Max. |
Nom |
Min. |
Min.~ Max. |
N |
LBS |
N |
LBS |
N |
LBS |
||
|
6.4 |
9.4 |
6.4 |
13.7 |
7-1 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
1.50 ~ 3.50 |
2670 |
600 |
5000 |
1124 |
Min. |
5560 |
1250 |
|
10.7 |
15.0 |
7-2 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
2.80 ~ 4.80 |
2670 |
600 |
6000 |
1348 |
|||||
|
11.3 |
15.6 |
7-3 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
3.40 ~ 5.40 |
2670 |
600 |
6200 |
1393 |
|||||
|
12.7 |
17.0 |
7-4 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
4.80 ~ 6.80 |
2670 |
600 |
6500 |
1461 |
Max. |
7339 |
1650 |
||
|
14.7 |
19.0 |
7-5 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
6.80 ~ 8.80 |
2670 |
600 |
7000 |
1573 |
|||||
|
16.7 |
21.0 |
7-8 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
8.80 ~ 10.80 |
2670 |
600 |
7000 |
1573 |
|||||
|
18.7 |
23.0 |
7-9 |
6.5~6.7 |
12.8 |
13.4 |
2.7 |
4.1 |
27.0 |
10.80 ~ 12.80 |
2670 |
600 |
7000 |
1573 |
|||||
