SL Fasteners Pvt. Ltd. manufacture close Type blind rivets in all sizes and styles. Blind Rivets are made as per IFI-114, DIN, and ASME standards. Different head styles are available: dome head closed blind rivets and CSK head close Type Blind Rivets. These blind rivets are made in 4 material grades:
Aluminum close Type blind Rivets
Available Grades: Aluminium 1100, Aluminium 5056
Steel closed Blind Rivets
Stainless Steel closed Blind Rivets.
Copper closed blind rivets
The various diameters and lengths of Rivets are available as per customer applications:
- 3.2 mm closed Blind Rivets
(Lengths: 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm) - 4.0 mm, closed Blind Rivets (Lengths: 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm)
- 4.8 mm closed Blind Rivets ( Lengths: 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm, 31.8 mm, 38.1 mm, 50.8 mm)
- 6.4 mm closed Blind Rivets (Lengths: 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm)
Apart from the sizes mentioned above customized blind rivets are manufactured as per customer drawings and various applications.

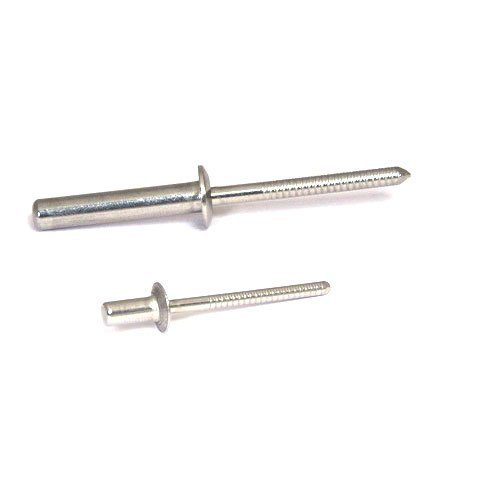

Close Type Blind Rivet

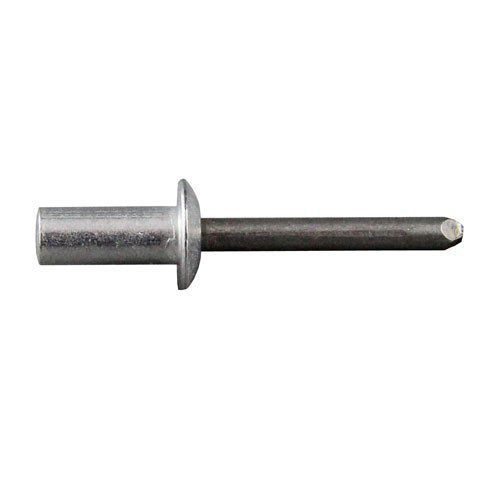

Close Type Blind Rivet

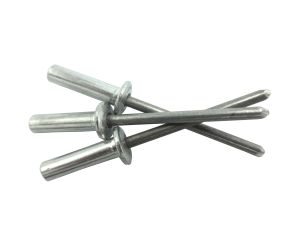

Close Type Blind Rivet

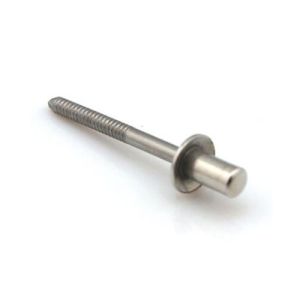

Close Type Blind Rivet
Material
- Rivet Body – Aluminium 1100, Mandrel – Aluminium Alloy
- Rivet Body – Aluminium 5056, Mandrel – Steel
- Rivet Body – Aluminium 5056, Mandrel – Stainless Steel
- Rivet Body – Steel, Mandrel – Steel
- Rivet Body – Stainless Steel, Mandrel – Stainless Steel
- Rivet Body – Copper Mandrel – Steel
Key Features
- Seal out moisture, air and other contaminants.
- Higher tensile and shear strength than the equivalent open end rivet.
- 100% mandrel head retention guaranteed.

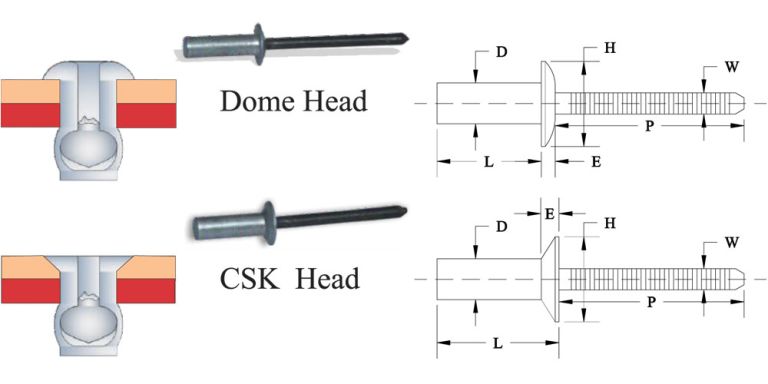

| Close Type Blind Rivet | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nom Rivet Size (Inch) | Nom Rivet Size (mm) | Rivet Code | Hole Dia | Domed Head Dia | Head Height | CSK 120° ± 2° Head Dia | CSK 120° ± 2° | Mandrel Dia | Mandrel Protrusion | Domed Head Grip Range | CSK 120 ° Head | |||||
| D | L | D | L | H | E | H | E | W | P | |||||||
| -0.2 | Max. | -0.2 | Max. | Min.~Max. | Min. | Max. | Max. | Max. | Max. | Max. | Nom | Min. | Min.~Max. | Min.~Max. | ||
| 1/8 | 1/4 | 3.2 | 6.4 | 4-1 | 3.3~3.4 | 5.7 | 6.4 | 1.3 | 5.6 | 6.2 | 1.0 | 1.9 | 25.4 | 0.5 ~ 1.6 | 0.5 ~ 1.6 | |
| 5/16 | 8.0 | 4-2 | 3.3~3.4 | 5.7 | 6.4 | 1.3 | 5.6 | 6.2 | 1.0 | 1.9 | 25.4 | 1.6 ~ 3.2 | 1.6 ~ 3.2 | |||
| 3/8 | 9.6 | 4-3 | 3.3~3.4 | 5.7 | 6.4 | 1.3 | 5.6 | 6.2 | 1.0 | 1.9 | 25.4 | 3.2 ~ 4.8 | 3.2 ~ 4.8 | |||
| 1/2 | 12.7 | 4-4 | 3.3~3.4 | 5.7 | 6.4 | 1.3 | 5.6 | 6.2 | 1.0 | 1.9 | 25.4 | 4.8 ~ 6.4 | 4.8 ~ 6.4 | |||
| 5/8 | 15.9 | 4-5 | 3.3~3.4 | 5.7 | 6.4 | 1.3 | 5.6 | 6.2 | 1.0 | 1.9 | 25.4 | 6.4 ~ 9.6 | 6.4 ~ 9.6 | |||
| 3/4 | 19.3 | 4-6 | 3.3~3.4 | 5.7 | 6.4 | 1.3 | 5.6 | 6.2 | 1.0 | 1.9 | 25.4 | 9.6 ~ 12.7 | 9.6 ~ 12.7 | |||
| 1.0 | 25.4 | 4-7 | 3.3~3.4 | 5.7 | 6.4 | 1.3 | 5.6 | 6.2 | 1.0 | 1.9 | 25.4 | 16.0 ~ 19.0 | 16.0 ~ 19.0 | |||
| 5/32 | 1/4 | 4.0 | 6.4 | 5-1 | 4.1 ~ 4.2 | 7.5 | 8.3 | 1.7 | 7.5 | 8.3 | 1.3 | 2.3 | 26.9 | 0.5 ~ 1.6 | 0.5 ~ 1.6 | |
| 5/16 | 8.0 | 5-2 | 4.1 ~ 4.2 | 7.5 | 8.3 | 1.7 | 7.5 | 8.3 | 1.3 | 2.3 | 26.9 | 1.6 ~ 3.2 | 1.6 ~ 3.2 | |||
| 3/8 | 9.6 | 5-3 | 4.1 ~ 4.2 | 7.5 | 8.3 | 1.7 | 7.5 | 8.3 | 1.3 | 2.3 | 26.9 | 3.2 ~ 4.8 | 3.2 ~ 4.8 | |||
| 1/2 | 12.7 | 5-4 | 4.1 ~ 4.2 | 7.5 | 8.3 | 1.7 | 7.5 | 8.3 | 1.3 | 2.3 | 26.9 | 4.8 ~ 6.4 | 4.8 ~ 6.4 | |||
| 5/8 | 15.9 | 5-5 | 4.1 ~ 4.2 | 7.5 | 8.3 | 1.7 | 7.5 | 8.3 | 1.3 | 2.3 | 26.9 | 6.4 ~ 9.6 | 6.4 ~ 9.6 | |||
| 3/4 | 19.3 | 5-6 | 4.1 ~ 4.2 | 7.5 | 8.3 | 1.7 | 7.5 | 8.3 | 1.3 | 2.3 | 26.9 | 9.6 ~ 12.7 | 9.6 ~ 12.7 | |||
| 1.0 | 25.4 | 5-7 | 4.1 ~ 4.2 | 7.5 | 8.3 | 1.7 | 7.5 | 8.3 | 1.3 | 2.3 | 26.9 | 16.0 ~ 19.0 | 16.0 ~ 19.0 | |||
| 3/16 | 1/4 | 4.8 | 6.4 | 6-1 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 0.5 ~ 1.6 | 0.5 ~ 1.6 | |
| 5/16 | 8.0 | 6-2 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 1.6 ~ 3.2 | 1.6 ~ 3.2 | |||
| 3/8 | 9.6 | 6-3 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 3.2 ~ 4.8 | 3.2 ~ 4.8 | |||
| 1/2 | 12.7 | 6-4 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 4.8 ~ 6.4 | 4.8 ~ 6.4 | |||
| 5/8 | 15.9 | 6-5 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 6.4 ~ 9.6 | 6.4 ~ 9.6 | |||
| 3/4 | 19.3 | 6-6 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 9.6 ~ 12.7 | 9.6 ~ 12.7 | |||
| 1.0 | 25.4 | 6-7 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 16.0 ~ 19.0 | 16.0 ~ 19.0 | |||
| 1 ¼ | 31.8 | 6-8 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 22.4 ~ 25.4 | 22.4 ~ 25.4 | |||
| 1 ½ | 38.1 | 6-9 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 28.6 ~ 31.8 | 28.6 ~ 31.8 | |||
| 2.0 | 50.8 | 6-10 | 4.9 ~ 5.0 | 9.0 | 10.0 | 2.0 | 9.0 | 10.0 | 1.5 | 2.8 | 26.9 | 31.8 ~ 35.0 | 31.8 ~ 35.0 | |||
| 1/4 | 3/8 | 6.4 | 9.6 | 7-1 | 6.5 ~ 6.6 | 12.0 | 13.3 | 2.5 | 12.0 | 13.3 | 2.0 | 3.7 | 26.9 | 3.2 ~ 4.8 | 3.2 ~ 4.8 | |
| 1/2 | 12.7 | 7-2 | 6.5 ~ 6.6 | 12.0 | 13.3 | 2.5 | 12.0 | 13.3 | 2.0 | 3.7 | 26.9 | 4.8 ~ 6.4 | 4.8 ~ 6.4 | |||
| 5/8 | 15.9 | 7-3 | 6.5 ~ 6.6 | 12.0 | 13.3 | 2.5 | 12.0 | 13.3 | 2.0 | 3.7 | 26.9 | 6.4 ~ 9.6 | 6.4 ~ 9.6 | |||
| 3/4 | 19.3 | 7-4 | 6.5 ~ 6.6 | 12.0 | 13.3 | 2.5 | 12.0 | 13.3 | 2.0 | 3.7 | 26.9 | 9.6 ~ 12.7 | 9.6 ~ 12.7 | |||
| 1.0 | 25.4 | 7-5 | 6.5 ~ 6.6 | 12.0 | 13.3 | 2.5 | 12.0 | 13.3 | 2.0 | 3.7 | 26.9 | 16.0 ~ 19.0 | 16.0 ~ 19.0 | |||
