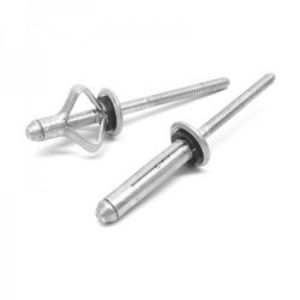

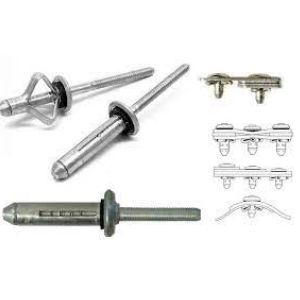

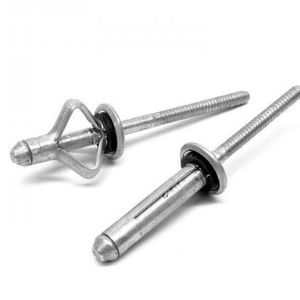

The B-tite rivet body folds into three separate legs forming a large blind-side head. This large bearing head evenly distributes the Bulb-Tite Rivet high clamp force in soft, thin, or brittle materials while providing high pull-through resistance. B-tite rivets generally come with a neoprene rubber washer. These are developed to solve application requirements in the pre-engineered metal building, roofing, and siding industry.
B- Tite Rivets are also called waterproof rivets
- Aluminium B-Tite Rivets
- Steel B- Tite Rivets
Lengths and diameters are as per the below table.
Mandrel – Aluminium
Key Features
- Large grip range
- Vibration-proof
- Use on straight curved application parts
- Waterproof with neoprene sealing washer
- Large distribution of the grip force over a large surface
|

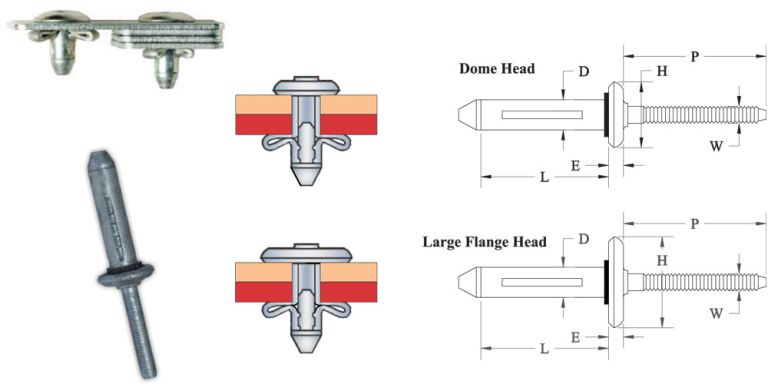

Bulb-Tite Rivet – Aluminium |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dome Head |
|||||||||||
|
Rivet Size (D x L) (mm) |
Rivet Code |
Hole Dia (mm) |
Head Dia ( H ) (mm) |
Head Thickness (mm) |
Grip Range (mm) |
Mandrel Protrusion (mm) |
Mandrel Dia. (mm) |
Tensile (Min.) |
Shear (Min.) |
||
|
D -0.15/+0.1 x L +0.5/-0.3 |
(Min.) ~ (Max.) |
(Min.) ~ (Max.) |
( E ) `0.2 |
(Min.) ~ (Max.) |
( P ) (Min.) |
( W ) `0.10 |
N |
LBS |
N |
LBS |
|
|
4.0 x 20.3 |
5-1 |
4.1 ~ 4.2 |
8.5 ~ 8.9 |
2.5 |
1.5 ~ 6.4 |
27.0 |
2.3 |
1050 |
236 |
2000 |
450 |
|
4.0 x 25.1 |
5-2 |
4.1 ~ 4.2 |
8.5 ~ 8.9 |
2.5 |
6.4 ~ 12.7 |
27.0 |
2.3 |
1050 |
236 |
2000 |
450 |
|
5.2 x 17.5 |
6-1 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
1.3 ~ 4.8 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
5.2 x 19.1 |
6-2 |
5.3 ~5.5 |
10.9 ~ 11.6 |
3.2 |
1.6 ~ 6.4 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
5.2 x 22.2 |
6-3 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
4.7 ~ 9.5 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
5.2 x 25.4 |
6-4 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
7.9 ~ 12.7 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
5.2 x 28.6 |
6-5 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
11.1 ~ 15.9 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
5.2 x 31.8 |
6-6 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
14.3 ~ 19.1 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
5.2 x 34.9 |
6-7 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
17.4 ~ 22.2 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
5.2 x 38.1 |
6-8 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
20.6 ~ 25.4 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
5.2 x 41.3 |
6-9 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
23.8 ~ 28.6 |
28.0 |
2.9 |
1950 |
438 |
2700 |
607 |
|
6.3 x 20.2 |
7-1 |
6.4 ~ 6.6 |
14.0 ~ 14.4 |
3.8 |
1.6 ~ 6.4 |
28.0 |
3.8 |
2500 |
562 |
4200 |
944 |
|
6.3 x 23.4 |
7-2 |
6.4 ~ 6.6 |
14.0 ~ 14.4 |
3.8 |
3.2 ~ 9.5 |
28.0 |
3.8 |
2500 |
562 |
4200 |
944 |
|
6.3 x 26.5 |
7-3 |
6.4 ~ 6.6 |
14.0 ~ 14.4 |
3.8 |
6.4 ~ 12.7 |
28.0 |
3.8 |
2500 |
562 |
4200 |
944 |
|
6.3 x 29.7 |
7-4 |
6.4 ~ 6.6 |
14.0 ~ 14.4 |
3.8 |
9.5 ~ 15.9 |
28.0 |
3.8 |
2500 |
562 |
4200 |
944 |
|
7.7 x 27.7 |
8-1 |
7.8 ~ 8.2 |
15.5 ~ 15.7 |
4.8 |
1.0 ~ 9.5 |
28.0 |
4.4 |
4850 |
1090 |
6650 |
1495 |
|
Large Flange Head |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rivet Size (D x L) (mm) |
Rivet Code |
Hole Dia (mm) |
Head Dia ( H ) (mm) |
Head Thickness (mm) |
Grip Range (mm) |
Mandrel Protrusion (mm) |
Mandrel Dia. (mm) |
Tensile (Min.) |
Shear (Min.) |
||
|
D -0.15/+0.1 x L +0.5/-0.3 |
(Min.) ~ (Max.) |
(Min.) ~ (Max.) |
( E ) `0.2 |
(Min.) ~ (Max.) |
( P ) (Min.) |
( W ) `0.10 |
N |
LBS |
N |
LBS |
|
|
7.7 x 27.7 |
8-1 |
7.8 ~ 8.2 |
18.3 ~ 19.4 |
5.3 |
1.1 ~ 9.5 |
28.0 |
4.4 |
4850 |
1090 |
6650 |
1495 |
|
7.7 x 34.0 |
8-2 |
7.8 ~ 8.2 |
18.3 ~ 19.4 |
5.3 |
6.4 ~ 15.9 |
28.0 |
4.4 |
4850 |
1090 |
6650 |
1495 |
Material
- Rivet Body – Steel, Mandrel – Steel
Key Features
- Large grip range
- Vibration-proof
- Use on straight curved application parts
- Waterproof with neoprene sealing washer
- Large distribution of the grip force over a large surface
|
Bulb-Tite Rivet – Steel |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dome Head |
|||||||||||
|
Rivet Size (D x L) (mm) |
Rivet Code |
Hole Dia (mm) |
Head Dia ( H ) (mm) |
Head Thickness (mm) |
Grip Range (mm) |
Mandrel Protrusion (mm) |
Mandrel Dia. (mm) |
Tensile (Min.) |
Shear (Min.) |
||
|
D -0.15/+0.1 x L +0.5/-0.3 |
(Min.) ~ (Max.) |
(Min.) ~ (Max.) |
( E ) `0.2 |
(Min.) ~ (Max.) |
( P ) (Min.) |
( W ) `0.10 |
N |
LBS |
N |
LBS |
|
|
5.2 x 19.1 |
6-2 |
5.3 ~5.5 |
10.9 ~ 11.6 |
3.2 |
1.6 ~ 6.4 |
28.0 |
2.9 |
2890 |
649 |
3890 |
874 |
|
5.2 x 22.2 |
6-3 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
4.7 ~ 9.5 |
28.0 |
2.9 |
2890 |
649 |
3890 |
874 |
|
5.2 x 25.4 |
6-4 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
7.9 ~ 12.7 |
28.0 |
2.9 |
2890 |
649 |
3890 |
874 |
|
5.2 x 28.6 |
6-5 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
11.1 ~ 15.9 |
28.0 |
2.9 |
2890 |
649 |
3890 |
874 |
|
5.2 x 31.8 |
6-6 |
5.3 ~ 5.5 |
10.9 ~ 11.6 |
3.2 |
14.3 ~ 19.1 |
28.0 |
2.9 |
2890 |
649 |
3890 |
874 |
|
6.3 x 20.2 |
7-1 |
6.4 ~ 6.6 |
14.0 ~ 14.4 |
3.8 |
1.6 ~ 6.4 |
28.0 |
3.8 |
4550 |
1022 |
8200 |
1843 |
|
6.3 x 23.4 |
7-2 |
6.4 ~ 6.6 |
14.0 ~ 14.4 |
3.8 |
3.2 ~ 9.5 |
28.0 |
3.8 |
4550 |
1022 |
8200 |
1843 |
|
Bulb-Tite Rivet Monel – Stainless Steel |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dome Head |
|||||||||||
|
Rivet Size (D x L) (mm) |
Rivet Code |
Hole Dia (mm) |
Head Dia ( H ) (mm) |
Head Thickness (mm) |
Grip Range (mm) |
Mandrel Protrusion (mm) |
Mandrel Dia. (mm) |
Tensile (Min.) |
Shear (Min.) |
||
|
D -0.15/+0.1 x L +0.5/-0.3 |
(Min.) ~ (Max.) |
(Min.) ~ (Max.) |
( E ) `0.2 |
(Min.) ~ (Max.) |
( P ) (Min.) |
( W ) `0.10 |
N |
LBS |
N |
LBS |
|
|
6.3 x 20.2 |
7-1 |
6.4 ~ 6.6 |
14.0 ~ 14.4 |
3.8 |
1.0 ~ 6.4 |
28.0 |
3.8 |
4400 |
989 |
7800 |
1753 |
|
Bulb-Tite Rivets Of All Head Types optionally Available With Washer, too. |
|||||||||||
