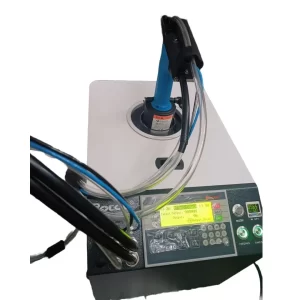

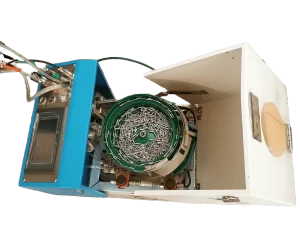

Automatic riveting tools from SL Fasteners Pvt. Ltd. provide high-end solutions for fast and intuitive riveting. The advance in technology of riveting tools has given rise to the demand for automatic riveters to save time and manual labor automatic riveting machines India of putting rivets in sheet holes. An automatic riveter provides the best solution: clips are put into the feeder and the riveting tool attached to the machine automatically fetches the rivets. Automatic Riveting Tool
Specifications- Model- 1000A Automatic Feeding Riveting Machine
| Total power | 350W |
|---|---|
| Loading capacity | 2000 pcs(3.2mm) 1500 pcs(4.0mm) 1000 pcs(4.8mm) |
| Blow pressure | 0.5-0.8MPa |
| Feeding Tube | 1.5-2mm |
| Maximum operating radius | 2m |
| Maximum feeding efficiency | 45PCS/min |
| Rivet diameters | 3.2mm,4.0mm,4.8 mm |
| Air supply | 0.5-0.8MPa |
| Power supply | 100-240VAC, 50/60Hz |
| Machine Size | 503 x 385 x 395 mm |
| Net weight | 45-46 kgs |
Working:
- Pour the rivets of correct specifications into the vibration plate
- Connect the air supply after confirming external connections
- Turn on the power
- Adjust the air pressure
- Set the blow time as 0.4-0.6sec
- Press the start button to start the machine
- Press riveters switch to start riveting, mandrel collected in back cap
