SL Fasteners Pvt. Ltd. manufacture the basic blind rivets in all sizes and styles. Open Type Blind Rivets are made as per IFI-114, DIN, and ASME standards. Different head styles are available as dome head blind rivets, CSK head Blind Rivets, and Large Flange Blind Rivets. These blind rivets are made in 3 material grades :
- Aluminium Blind Rivets
Available Grades: Aluminium 1100, 5050, 5052, 5056, 5154 - Steel Blind Rivets –
Available Grades: Low Carbon Steel - Stainless Steel Blind Rivets
Available Grades: Stainless Steel 302, 304
The various diameters and lengths of Rivets are available as per customer applications
- 2.4 mm Blind Rivet (Lengths: 4.8 mm, 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm)
- 3.2 mm Blind Rivet (Lengths: 6.4 mm, 8. o mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm)
- 4.0 mm Blind Rivet (Lengths: 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3mm, 19.3mm)
- 4.8 mm Blind Rivets (Lengths: 6.4mm, 8. o mm, 6.4 mm, 12.7 mm, 12.7 mm, 19.3 mm 31.8 mm, 31.8 mm, 50.8 mm)
- 6.4 mm, Blind Rivets ( Lengths: 9.6 mm, 12.7 mm, 15.9 mm. 19.3mm, 25.4 mm)
Apart from the above-mentioned sizes customized blind rivets are manufactured per customer drawings and various applications.

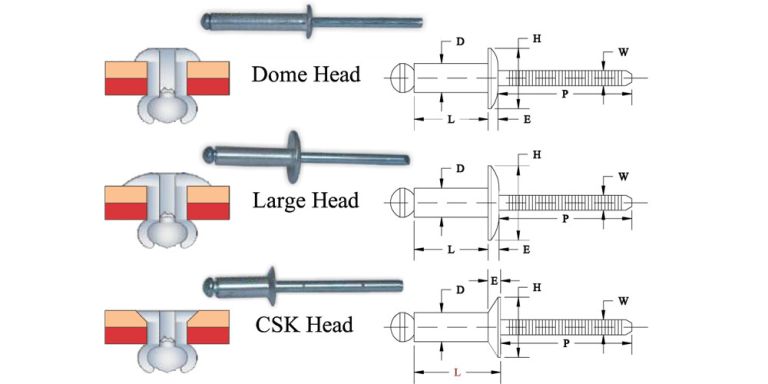

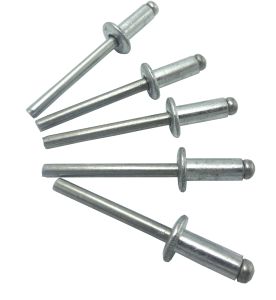

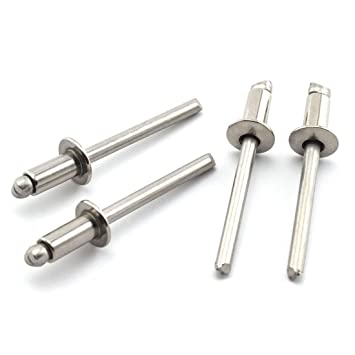

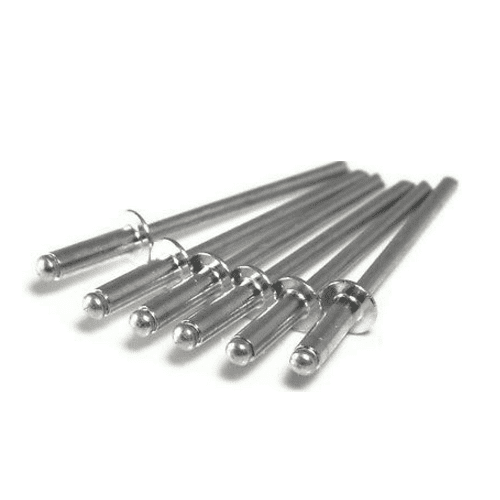

Open Type Blind Rivets
Open Type Blind Rivets
Open Type Blind Rivets
Open Type Blind Rivets
Material
- Rivet Body – Aluminium 1100, Mandrel – Steel
- Rivet Body – Aluminium 5050, Mandrel – Steel
- Rivet Body – Aluminium 5052, Mandrel – Steel
- Rivet Body – Aluminium 5154, Mandrel – Steel
- Rivet Body – Aluminium 5056, Mandrel – Steel
- Rivet Body – Steel, Mandrel – Steel
- Rivet Body – Stainless Steel, Mandrel – Stainless Steel
- Rivet Body – Copper, Mandrel – Steel
Key Features
- Available in a range of size and materials.
- Versatile for general fastening needs.
- Strong, low cost fastenings.
- Ideal for wide range of applications.
|
Open Type Blind Rivets |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Nom Rivet Size (Inch) |
Nom Rivet Size (mm) |
Rivet Code |
Hole Dia |
Domed Head Dia |
Head Height |
Large Head Dia |
Head Height |
CSK 120°±2° Head Dia |
Head Height |
Mandrel Dia |
Mandrel Protrusion |
Domed Head Grip Range |
CSK 120° Head Grip Range |
|||||
|
D |
L |
D |
L |
H |
E |
H |
E |
H |
E |
W |
P |
|||||||
|
-0.2 |
Max. |
-0.2 |
Max. |
Min.~ Max. |
Min. |
Max. |
Max. |
Min. |
Max. |
Max. |
Min. |
Max. |
Max. |
Nom. |
Min. |
Min.~ Max. |
Min.~ Max. |
|
|
3/32 |
3/16 |
2.4 |
4.8 |
3-1 |
2.5~2.6 |
4.5 |
5.0 |
0.8 |
6.8 |
7.4 |
1.0 |
4.0 |
4.7 |
0.7 |
1.4 |
27.0 |
0.5 ~ 1.0 |
0.5 ~ 1.0 |
|
1/4 |
6.4 |
3-2 |
2.5~2.6 |
4.5 |
5.0 |
0.8 |
6.8 |
7.4 |
1.0 |
4.0 |
4.7 |
0.7 |
1.4 |
27.0 |
0.5 ~ 1.6 |
0.5 ~ 1.6 |
||
|
5/16 |
8.0 |
3-3 |
2.5~2.6 |
4.5 |
5.0 |
0.8 |
6.8 |
7.4 |
1.0 |
4.0 |
4.7 |
0.7 |
1.4 |
27.0 |
1.6 ~ 3.2 |
1.6 ~ 3.2 |
||
|
3/8 |
9.6 |
3-4 |
2.5~2.6 |
4.5 |
5.0 |
0.8 |
6.8 |
7.4 |
1.0 |
4.0 |
4.7 |
0.7 |
1.4 |
27.0 |
3.2 ~ 4.8 |
3.2 ~ 4.8 |
||
|
1/2 |
12.7 |
3-5 |
2.5~2.6 |
4.5 |
5.0 |
0.8 |
6.8 |
7.4 |
1.0 |
4.0 |
4.7 |
0.7 |
1.4 |
27.0 |
4.8 ~ 6.4 |
4.8 ~ 6.4 |
||
|
5/8 |
15.9 |
3-6 |
2.5~2.6 |
4.5 |
5.0 |
0.8 |
6.8 |
7.4 |
1.0 |
4.0 |
4.7 |
0.7 |
1.4 |
27.0 |
6.4 ~ 9.6 |
6.4 ~ 9.6 |
||
|
1/8 |
1/4 |
3.2 |
6.4 |
4-1 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
5.3 |
5.9 |
0.8 |
1.9 |
27.0 |
0.5 ~ 1.6 |
0.5 ~ 1.6 |
|
5/16 |
8.0 |
4-2 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
5.3 |
5.9 |
0.8 |
1.9 |
27.0 |
1.6 ~ 3.2 |
1.6 ~ 3.2 |
||
|
3/8 |
9.6 |
4-3 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
5.3 |
5.9 |
0.8 |
1.9 |
27.0 |
3.2 ~ 4.8 |
3.2 ~ 4.8 |
||
|
1/2 |
12.7 |
4-4 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
5.3 |
5.9 |
0.8 |
1.9 |
27.0 |
4.8 ~ 6.4 |
4.8 ~ 6.4 |
||
|
5/8 |
15.9 |
4-5 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
5.3 |
5.9 |
0.8 |
1.9 |
27.0 |
6.4 ~ 9.6 |
6.4 ~ 9.6 |
||
|
3/4 |
19.3 |
4-6 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
5.3 |
5.9 |
0.8 |
1.9 |
27.0 |
9.6 ~ 12.7 |
9.6 ~ 12.7 |
||
|
1.0 |
25.4 |
4-7 |
3.3~3.4 |
6.0 |
6.6 |
1.0 |
9.1 |
9.9 |
1.6 |
5.3 |
5.9 |
0.8 |
1.9 |
27.0 |
16.0~19.0 |
16.0~19.0 |
||
|
5/32 |
1/4 |
4.0 |
6.4 |
5-1 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
6.8 |
7.5 |
1.0 |
2.4 |
27.0 |
0.5 ~ 1.6 |
0.5 ~ 1.6 |
|
5/16 |
8.0 |
5-2 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
6.8 |
7.5 |
1.0 |
2.4 |
27.0 |
1.6 ~ 3.2 |
1.6 ~ 3.2 |
||
|
3/8 |
9.6 |
5-3 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
6.8 |
7.5 |
1.0 |
2.4 |
27.0 |
3.2 ~ 4.8 |
3.2 ~ 4.8 |
||
|
1/2 |
12.7 |
5-4 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
6.8 |
7.5 |
1.0 |
2.4 |
27.0 |
4.8 ~ 6.4 |
4.8 ~ 6.4 |
||
|
5/8 |
15.9 |
5-5 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
6.8 |
7.5 |
1.0 |
2.4 |
27.0 |
6.4 ~ 9.6 |
6.4 ~ 9.6 |
||
|
3/4 |
19.3 |
5-6 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
6.8 |
7.5 |
1.0 |
2.4 |
27.0 |
9.6~12.7 |
9.6~12.7 |
||
|
1.0 |
25.4 |
5-7 |
4.1~4.2 |
7.5 |
8.3 |
1.27 |
11.3 |
12.4 |
1.9 |
6.8 |
7.5 |
1.0 |
2.4 |
27.0 |
16.0~19.0 |
16.0~19.0 |
||
|
3/16 |
1/4 |
4.8 |
6.4 |
6-1 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
0.5~1.6 |
0.5~1.6 |
|
5/16 |
8.0 |
6-2 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
1.6~3.2 |
1.6~3.2 |
||
|
3/8 |
9.6 |
6-3 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
3.2~4.8 |
3.2~4.8 |
||
|
1/2 |
12.7 |
6-4 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
4.8~6.4 |
4.8~6.4 |
||
|
5/8 |
15.9 |
6-5 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
6.4~9.6 |
6.4~9.6 |
||
|
3/4 |
19.3 |
6-6 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
9.6~12.7 |
9.6~12.7 |
||
|
1.0 |
25.4 |
6-7 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
16.0~19.0 |
16.0~19.0 |
||
|
1 ¼ |
31.8 |
6-8 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
22.4~25.4 |
22.4~25.4 |
||
|
1 ½ |
38.1 |
6-9 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
28.6~31.8 |
28.6~31.8 |
||
|
2.0 |
50.8 |
6-10 |
4.9~5.0 |
9.0 |
10.0 |
1.52 |
15.2 |
16.5 |
2.3 |
8.5 |
9.2 |
1.3 |
2.8 |
27.0 |
31.8~35.0 |
31.8~35.0 |
||
|
1/4 |
3/8 |
6.4 |
9.6 |
7-1 |
6.5~6.6 |
12.0 |
13.3 |
2.0 |
18.2 |
19.8 |
2.7 |
11.6 |
12.3 |
1.5 |
3.8 |
31.7 |
3.2~4.8 |
3.2~4.8 |
|
1/2 |
12.7 |
7-2 |
6.5~6.6 |
12.0 |
13.3 |
2.0 |
18.2 |
19.8 |
2.7 |
11.6 |
12.3 |
1.5 |
3.8 |
31.7 |
4.8~6.4 |
4.8~6.4 |
||
|
5/8 |
15.9 |
7-3 |
6.5~6.6 |
12.0 |
13.3 |
2.0 |
18.2 |
19.8 |
2.7 |
11.6 |
12.3 |
1.5 |
3.8 |
31.7 |
6.4~9.6 |
6.4~9.6 |
||
|
3/4 |
19.3 |
7-4 |
6.5~6.6 |
12.0 |
13.3 |
2.0 |
18.2 |
19.8 |
2.7 |
11.6 |
12.3 |
1.5 |
3.8 |
31.7 |
9.6~12.7 |
9.6~12.7 |
||
|
1.0 |
25.4 |
7-5 |
6.5~6.6 |
12.0 |
13.3 |
2.0 |
18.2 |
19.8 |
2.7 |
11.6 |
12.3 |
1.5 |
3.8 |
31.7 |
16.0~19.0 |
16.0~19.0 |
||
